Takstar SM-8B Professional Recording Condenser Microphone
Takstar SM-8B Professional Recording Condenser Microphone
Share
Couldn't load pickup availability
Product Description

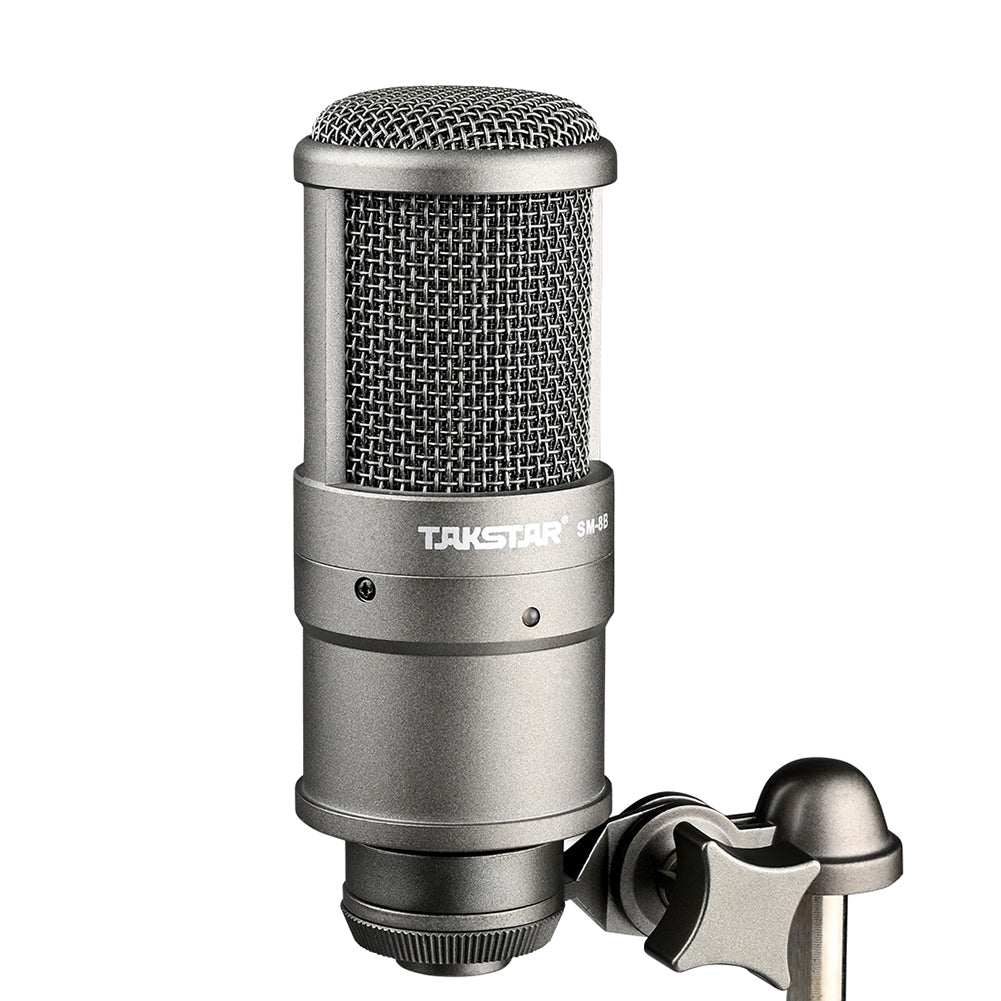

The Takstar SM-8B is a unidirectional cardioid condenser microphone optimized for vocal and instrument recording, podcasting, broadcast, and live streaming. Its high-sensitivity 16 mm condenser capsule and precision preamplifier circuitry deliver clear, natural tone with low self-noise. Housed in a machined all-metal nickel-plated body with a standard XLR output, it easily mounts via the included swivel shock mount and requires 48 V phantom power for operation.
Key Features
-
Unidirectional cardioid polar pattern for focused pickup and background noise rejection
-
High-sensitivity 16 mm condenser capsule for detailed sound capture
-
Wide, smooth frequency response (20 Hz – 20 kHz) for natural tonal balance
-
Low equivalent noise level (≤ 22 dBA) for ultra-quiet recordings
-
High SPL handling (up to 130 dB at 1 kHz, THD ≤ 1 %) for dynamic sources
-
Built-in preamplifier circuitry for stable gain and low distortion
-
Machined all-metal nickel-plated housing with refined paint finish for durability
-
Standard XLR (female) connector; requires 48 V phantom power; swivel shock mount included
Technical Specifications
| Specification | Detail |
|---|---|
| Capsule | 16 mm condenser |
| Polar Pattern | Unidirectional cardioid |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –33 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz) |
| Equivalent Noise Level | ≤ 22 dBA (IEC 581-5) |
| Peak SPL | 130 dB (THD ≤ 1 % at 1 kHz) |
| Output Impedance | 200 Ω ± 30 % (at 1 kHz) |
| Power Supply | 48 V phantom power |
| Connector | XLR female |
| Dimensions (Ø × L) | 56 mm × 148 mm |
| Weight | 330 g |
