The Takstar PX-5 professional power amplifier powers compatible passive speakers for church sound, live events and other PA setups. It delivers rated stereo output of 550 W per channel at 8 Ω or 800 W per channel at 4 Ω, with an 8 Ω bridge mode rated at 1,600 W.
Use stereo mode to drive two compatible speaker loads, or bridge mode for a compatible 8 Ω load when your sound system calls for it. Match speaker impedance and power handling to the chosen mode before connecting your system.
Its 20 Hz to 20 kHz frequency response covers the stated audio range, while the specified 100 dB signal-to-noise ratio helps keep background noise controlled. Two selectable input sensitivity settings, 1.0 V and 1.4 V, offer a way to match the amplifier to the output level of your source equipment.
For worship teams, event companies and venue operators, the PX-5 combines soft start, short-circuit, limiter, DC fault, AC line fuse and thermal-cut protection. Its two-step-speed fan provides active cooling during use; allow appropriate ventilation around the unit.
Key Features- Rated stereo output of 550 W per channel at 8 Ω gives compatible passive speakers dedicated amplification.
- Rated stereo output of 800 W per channel at 4 Ω supports compatible lower-impedance speaker loads.
- Rated bridged output of 1,600 W at 8 Ω offers an alternative configuration for a suitable single load.
- A 20 Hz to 20 kHz frequency response covers the stated audio frequency range.
- Selectable 1.0 V and 1.4 V input sensitivity helps match the amplifier to compatible source equipment.
- A 100 dB signal-to-noise ratio helps keep background noise controlled.
- A damping factor of 300 at 1 kHz and 8 Ω helps control compatible speaker movement.
- Soft start, short-circuit, limiter, DC fault, AC line fuse and thermal-cut protections help protect the system during operation.
- A two-step-speed fan provides active cooling for extended sound-system use.

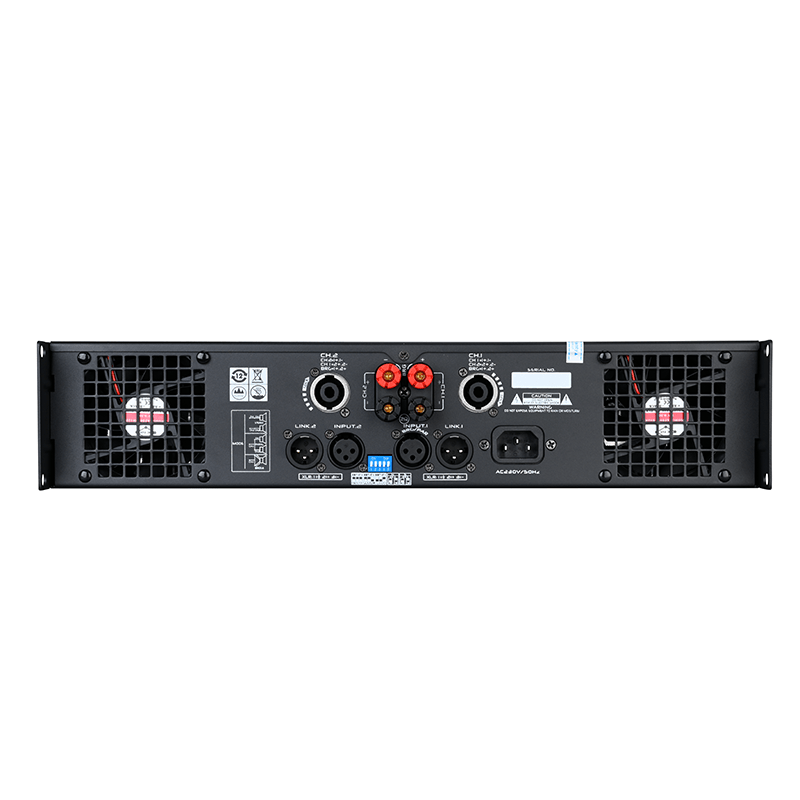

- Binding-post stereo and bridge outputs let installers connect suitable speaker wiring.
| Attribute | Value |
|---|---|
| Brand | Takstar |
| Model | PX-5 |
| Type | Professional power amplifier |
| Rated output, stereo 8 Ω, 1 kHz, 1% THD | 550 W + 550 W |
| Rated output, stereo 4 Ω, 1 kHz, 1% THD | 800 W + 800 W |
| Rated output, bridge 8 Ω, 1 kHz, 1% THD | 1,600 W |
| Output connector | Binding posts for stereo and bridge output |
| Frequency response | 20 Hz to 20 kHz |
| Input sensitivity | 1.0 V; 1.4 V |
| Input impedance | 20 kΩ balanced; 10 kΩ unbalanced |
| Signal-to-noise ratio | 100 dB |
| THD, 8 Ω, 1 kHz, half power | <0.03% |
| Rated output power separation, 8 Ω, 1 kHz | 80 dB |
| Damping factor, 1 kHz, 8 Ω | 300 |
| Slew rate | 20 V/μs |
| Protection | Soft start; short circuit; limiter; DC fault; AC line fuse; thermal cut |
| Cooling | Two-step-speed fan |
| Power supply | AC 220–240 V, 50 Hz |
| Net weight | 13.5 kg |
| Dimensions, W × D × H | 483 × 88 × 410 mm |
Q: What speaker loads can the Takstar PX-5 drive at its stated ratings?
A: Takstar lists rated output at 8 Ω or 4 Ω in stereo and at 8 Ω in bridge mode. Match your speaker load and power handling to the selected mode before connecting it.
Q: What mains supply does the PX-5 require?
A: The supplied specification lists AC 220–240 V at 50 Hz. Ensure the unit has room for its fan to ventilate.
