Give two performers or speakers room to move with the Phenyx Pro PTAU-2 dual-channel wireless dynamic microphone system, suited to worship teams, event hosts and live presentations.
Its true diversity receiver helps maintain a stable signal as presenters move around the stage. Two independent channels let two voices work at once without sharing one microphone.
Each channel offers 1,000 selectable frequencies in its assigned band, with 0.025 MHz spacing. That flexibility helps you find a cleaner operating frequency at busy venues; check locally permitted frequencies before use.
For church services, corporate events and live gigs, the receiver provides balanced and unbalanced outputs for connection to suitable audio equipment. The specified microphone transmitter runs for at least eight hours on AA alkaline battery power, giving you time for a full session.
Key Features- True diversity reception helps keep voices steady as performers move around the venue.
- Two independent channels let two speakers or singers perform at the same time.
- Each channel offers 1,000 selectable frequencies to help you find a usable frequency in a crowded RF environment.
- Channel 1 covers 512 to 536 MHz, giving you a defined tuning range for the first microphone.
- Channel 2 covers 537 to 562 MHz, providing a separate tuning range for the second microphone.
- A 60 Hz to 18 kHz frequency response captures a broad range of spoken and sung vocal frequencies.
- Dynamic range above 110 dB helps accommodate both quiet passages and louder performances.
- A signal-to-noise ratio above 105 dB helps keep the output clear.

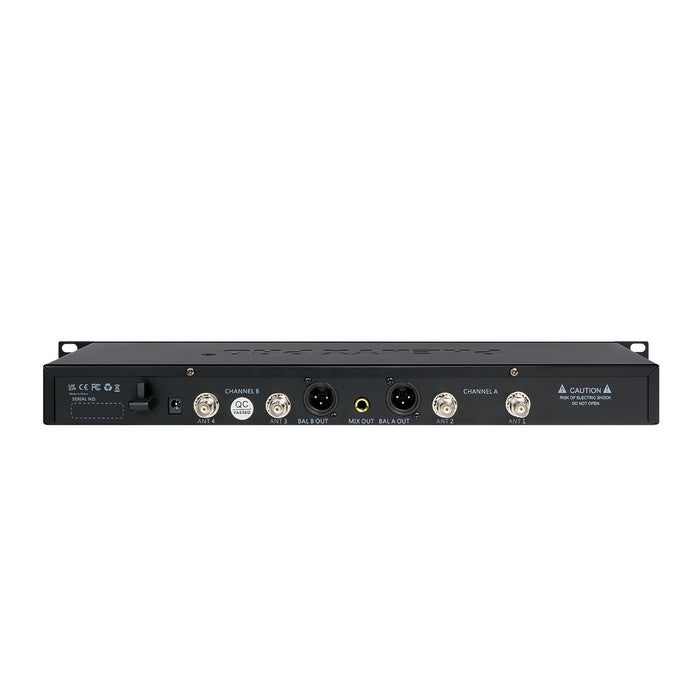

- Balanced and unbalanced receiver outputs provide connection choices for suitable mixers and PA systems.
- At least eight hours of specified transmitter battery life with AA alkaline power helps cover long events.
| Attribute | Value |
|---|---|
| Brand | Phenyx Pro |
| Model | PTAU-2 |
| Type | Dual-channel true diversity wireless dynamic microphone system |
| System frequency range | 512 to 562 MHz |
| Channel 1 frequency range | 512 to 536 MHz |
| Channel 2 frequency range | 537 to 562 MHz |
| Selectable frequencies | 1,000 per channel, 0.025 MHz increments |
| Modulation | FM |
| Available bandwidth | 25 kHz per channel |
| Frequency stability | ±0.005% |
| Dynamic range | >110 dB |
| Peak deviation | ±45 kHz |
| Frequency response | 60 Hz to 18 kHz (±3 dB) |
| Signal-to-noise ratio | >105 dB |
| Total harmonic distortion | <0.5% |
| Receiver IF frequency | 110 MHz (first), 10.7 MHz (second) |
| Receiver antenna connector | BNC |
| Receiver sensitivity | 12 dBμV (80 dB S/N) |
| Receiver quieting sensitivity | -40 dB |
| Receiver image rejection | >80 dB |
| Receiver unbalanced output | +4 dB (1.25 V) / 5 kΩ |
| Receiver balanced output | +10 dB (2.5 V) / 600 Ω |
| Receiver power | DC 11 to 16 V (rated 12 V); <200 mA single receiver, <350 mA dual receiver |
| Transmitter output power | 5 to 30 mW, depending on setting |
| Transmitter current consumption | <110 mA (HF), <80 mA (LF) |
| Transmitter battery life | ≥8 hours with AA alkaline battery |
Q: Can both microphones operate on the same frequency band? A: The two channels have separate assigned ranges: 512 to 536 MHz for channel 1 and 537 to 562 MHz for channel 2. Choose permitted, clear frequencies for your venue.
Q: What power does the receiver need? A: It requires 11 to 16 V DC, rated at 12 V. Confirm the included power supply and the transmitter battery quantity before use.
