Numark CM200 5-Channel DJ Mixer
Numark CM200 5-Channel DJ Mixer
Share
Couldn't load pickup availability

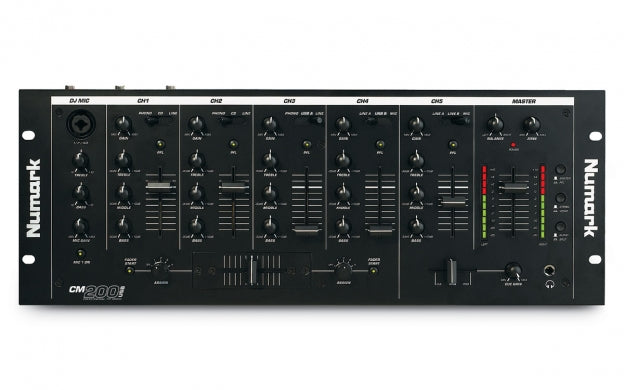

Product Description The Numark CM200 is a budget-friendly 5-channel DJ mixer designed for mobile DJs, clubs, bars, and restaurant installations. It features 3 turntable inputs and 10 line-level inputs, each with a 3-band EQ for flexible frequency shaping. Multiple output options include balanced XLR and RCA connections for Master, Zone, and Record feeds, and it mounts into a standard 19-inch rack for convenient installation, storage, and transport.
Key Features
-
Five channels: 3 turntable inputs; 10 line-level inputs with 3-band EQ
-
Balanced XLR and RCA outputs for Master, Zone, and Record
-
Rack-mountable 1U design for easy installation in a 19″ rack
-
Signal-to-noise ratios: Line >96 dB; Mic >78 dB; Phono >87 dB
-
Three-band EQ per channel: Bass @ 60 Hz; Mid @ 1.2 kHz; Treble @ 15 kHz
Technical Specifications
| Specification | Detail |
|---|---|
| Model | CM200 |
| Channels | 5 total (3 turntable; 10 line) |
| Turntable Inputs | 3 × RCA phono unbalanced |
| Line Inputs | 10 × RCA line unbalanced |
| Microphone Inputs | 1 × XLR/¼″ combo; 2 × ¼″ phone |
| EQ | 3-band per channel (±12 dB bass/mid; ±10 dB treble) |
| Outputs | Master 1 L/R XLR; Master 2 L/R RCA; Zone L/R RCA; Record L/R RCA; Headphone ¼″ TRS |
| Signal-to-Noise Ratio | Line >96 dB; Mic >78 dB; Phono >87 dB |
| Frequency Response | Line: 20 Hz – 20 kHz ±0.5 dB; Phono: 20 Hz – 15 kHz ±0.5 dB |
| Power Consumption | 11 W typical; 14.7 W max (with full headphone load) |
| Rack Mount | 1 U, 19″ standard |
| Dimensions (H × W × D) | 175 × 480 × 95 mm |
| Weight | Not specified by manufacturer |
