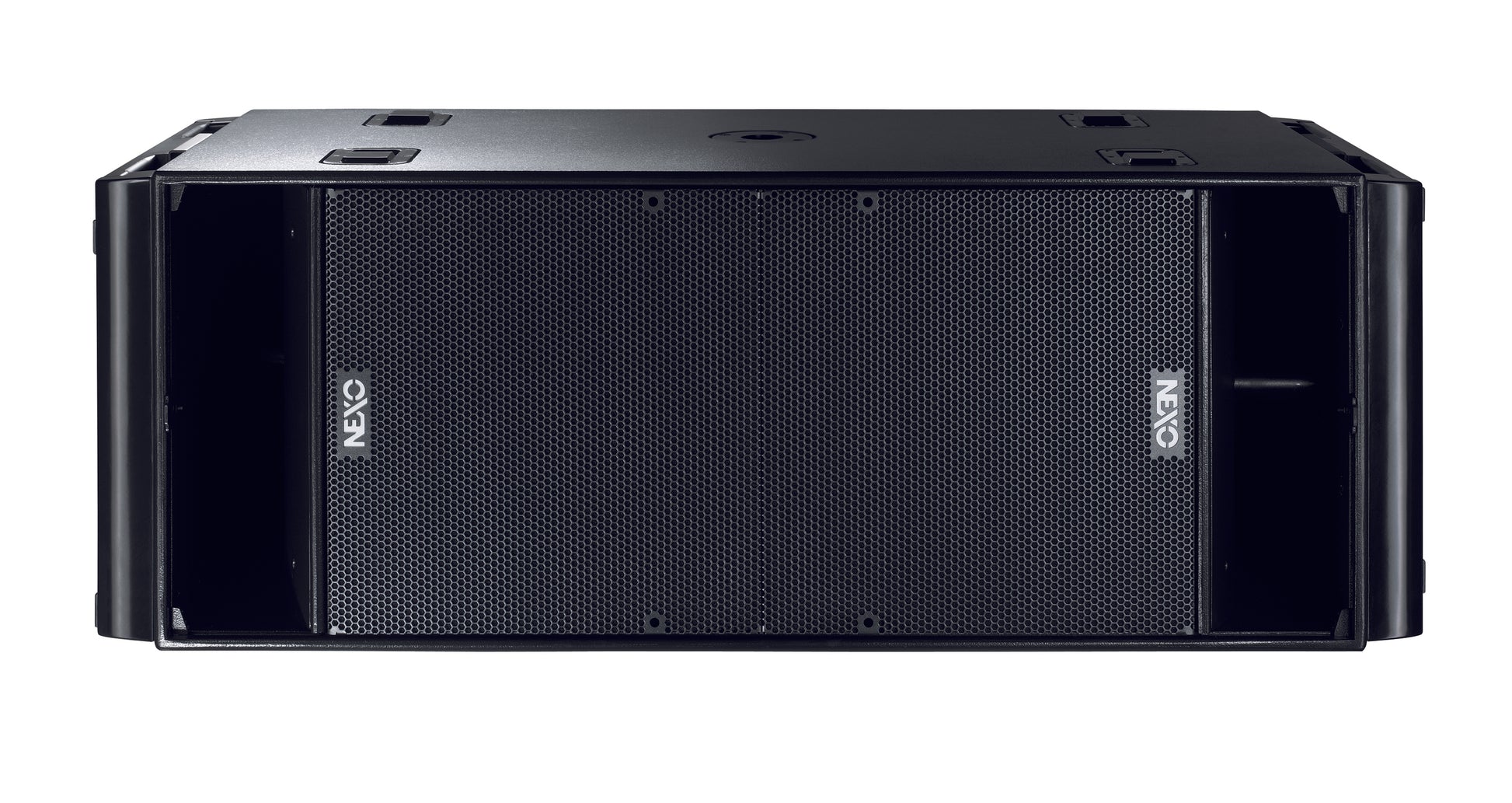

NEXO RS18 Sub Bass Loudspeaker
NEXO RS18 Sub Bass Loudspeaker
Share
Couldn't load pickup availability
The NEXO RS18 Sub Bass Loudspeaker harnesses patent-pending RAY SUB™ technology in a compact, low-profile 2 × 18″ format. By optimizing the phase relationship and acoustic distance between its radiating surfaces, it delivers a coherent 30 Hz–100 Hz frequency response with an average +5 dB forward gain and effective rear cancellation—perfect for installations and touring applications requiring powerful, directional bass reinforcement.
Key Features
-
Patent-pending RAY SUB™ Technology for unmatched bass coherence and configurable directivity
-
Two 18″ long-excursion Neodymium drivers for deep, accurate low-frequency output
-
Cardioid or omni-directional operation to minimize rear wall reflections
-
Aerodynamically profiled vents reducing port noise by up to 20 dB at high SPL
-
Robust Baltic-birch ply enclosure with optional touring (with handles) or install (no-handles) finishes
Technical Specifications
-
Drivers • 2 × 18″ (46 cm) long-excursion Neodymium woofers
-
Frequency Response • Nominal: 30 Hz – 100 Hz (–3 dB) • Usable: 29 Hz – 150 Hz (–6 dB)
-
Sensitivity (1 W/1 m) • 105 dB SPL nominal (Omni) / 103 dB SPL nominal (Cardioid)
-
Peak SPL @ 1 m • 143 – 146 dB (Omni) / 140 – 143 dB (Cardioid)
-
Impedance • 2 × 8 Ω nominal
-
Recommended Amplification • Omni mode: 3 500–8 000 W into 4 Ω (1 channel) • Cardioid mode: 1 750–4 000 W into 8 Ω per channel (2 channels)
-
Connectors • 4 × NL4MP Speakon® (In/Through)
-
Dimensions (H × W × D) • Tour version (w/ handles): 520 × 1 403 × 732 mm • Install version (no handles): 520 × 1 238 × 732 mm
-
Weight • Net: 90 kg (199 lb) • With handles: 105 kg (231.5 lb) • With rigging system: 126 kg (278 lb)
