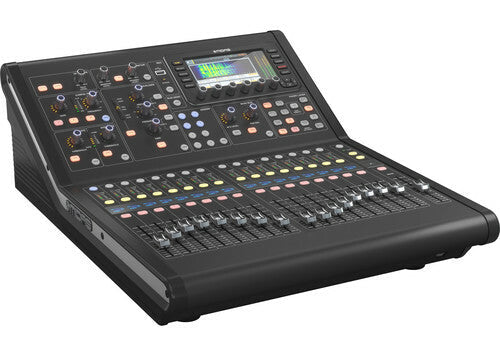

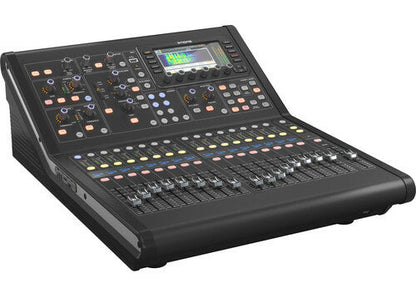

Midas M32R — 40‑Input Digital Mixer with Midas PRO Preamps
Midas M32R — 40‑Input Digital Mixer with Midas PRO Preamps
Couldn't load pickup availability
Need help before checkout?
Chat with Zamar on WhatsApp
Get product advice or a quote before you order.
The Midas M32R delivers 40 input channels, 25 time‑aligned mix buses, and 16 Midas PRO mic preamps for world‑class audio quality. Its 17 motorized 100mm faders, 5" color display, and LCD scribble strips provide fast, intuitive control. With AES50 networking, the M32R supports up to 96 inputs and 96 outputs using Midas DL16/DL32 stage boxes. The console includes Klark Teknik DSP, 8 stereo FX engines, and optional expansion via DN32‑LIVE, Dante, or MADI cards. Ideal for churches, touring rigs, broadcast studios, and professional installations.
-
40 input channels (16 Midas PRO preamps + digital inputs)
-
17 motorized faders for precise control
-
25 mix buses (time‑aligned & phase‑coherent)
-
AES50 networking — up to 96×96 I/O
-
Klark Teknik DSP with 8 stereo FX engines
-
LCD scribble strips for channel labeling
-
Expansion options: DN32‑LIVE, Dante, MADI
-
Remote control via iPad, Android, Mac, or PC
Technical Specifications
| Feature | Detail |
|---|---|
| Input Channels | 40 |
| Mic Preamps | 16 Midas PRO |
| Mix Buses | 25 |
| Faders | 17 motorized 100mm |
| Display | 5" color TFT |
| Outputs | 8 XLR + 6 line I/O |
| Networking | AES50 (up to 96×96 I/O) |
| Recording | DN32‑LIVE (32‑track SD) optional |
| Dimensions | Rackmountable (3U height) |
| Weight | ~14.3 kg |
