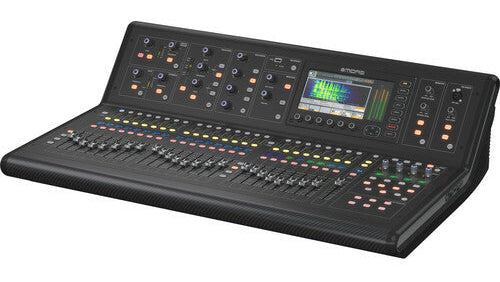

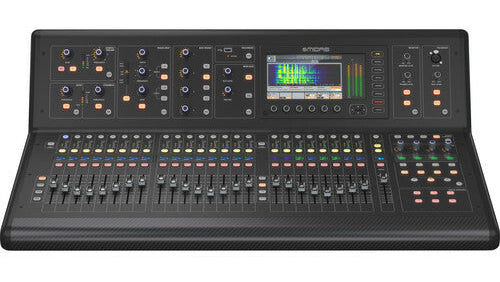

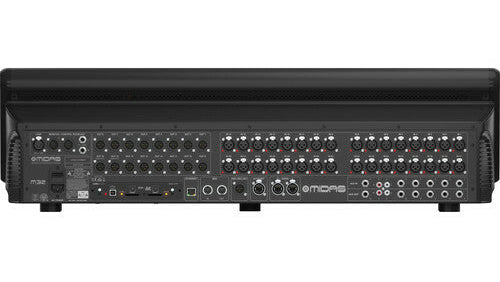

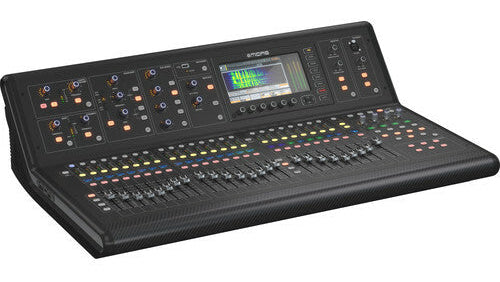

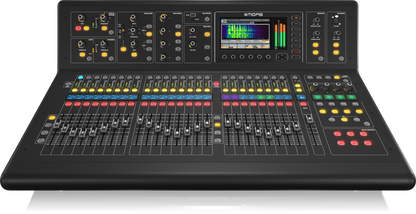

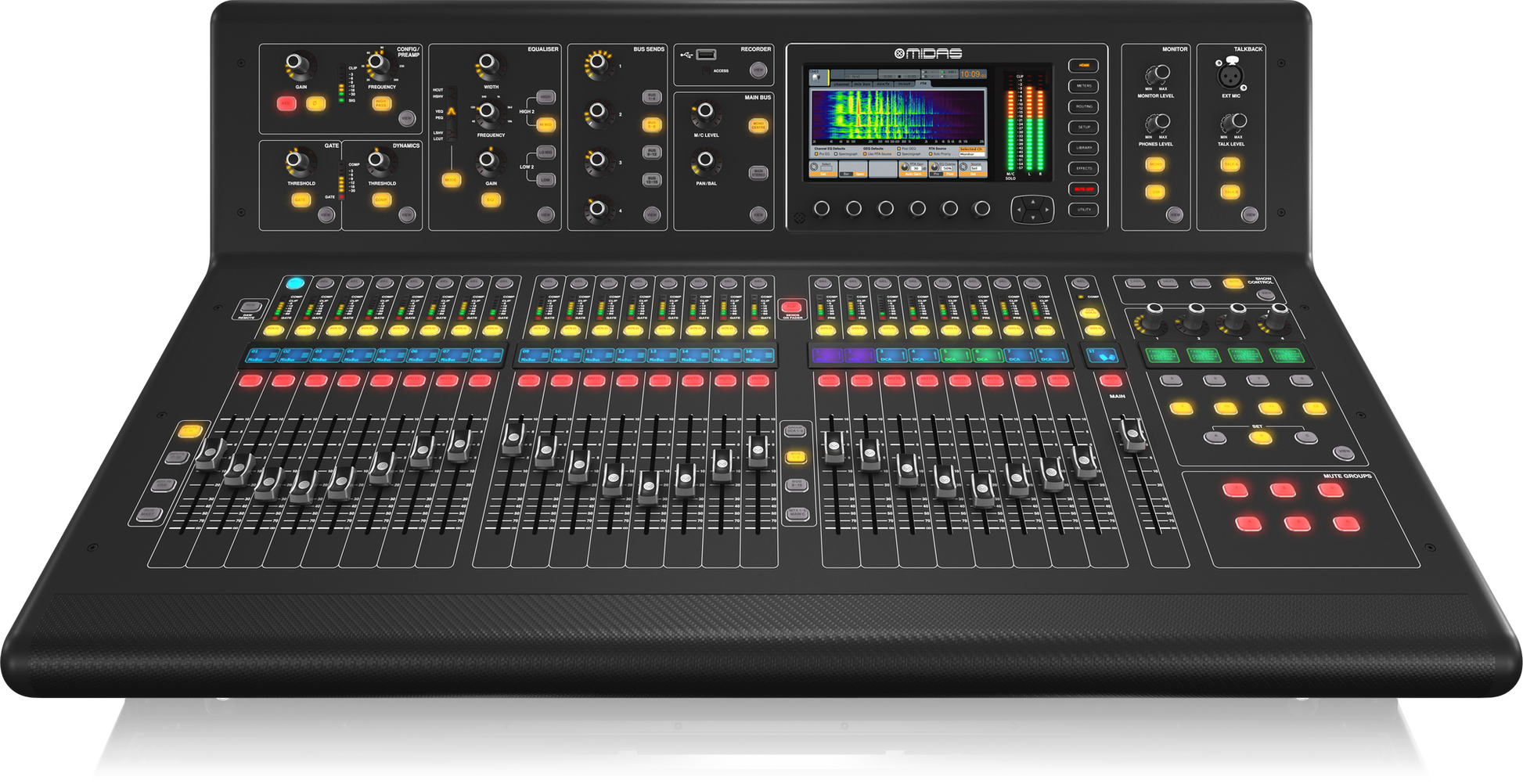

The Midas M32 delivers 40 input channels, 32 Midas PRO mic preamps, and 25 mix buses with time‑aligned, phase‑coherent routing. Its 25 motorized 100mm faders, 7‑inch color TFT display, and LCD scribble strips provide fast, intuitive workflow for professional engineers. With AES50 networking, the M32 supports up to 96 inputs and 96 outputs using Midas DL16/DL32 stage boxes. The console includes Klark Teknik DSP, 8 stereo FX engines, and 32‑channel USB recording/playback. Perfect for large churches, touring rigs, broadcast studios, and high‑end installations.

• 40 input channels (32 Midas PRO preamps + digital inputs)

• 25 motorized faders for full hands‑on control

• 25 mix buses (time‑aligned & phase‑coherent)

• AES50 networking — up to 96×96 I/O

• Klark Teknik DSP with 8 stereo FX engines

• 7‑inch color TFT display

• LCD scribble strips for channel labeling

• 32‑channel USB interface for recording/playback

• Expansion options: Dante, MADI, DN32‑LIVE (SD recording)

• Premium touring‑grade chassis

📊 Technical Specifications
