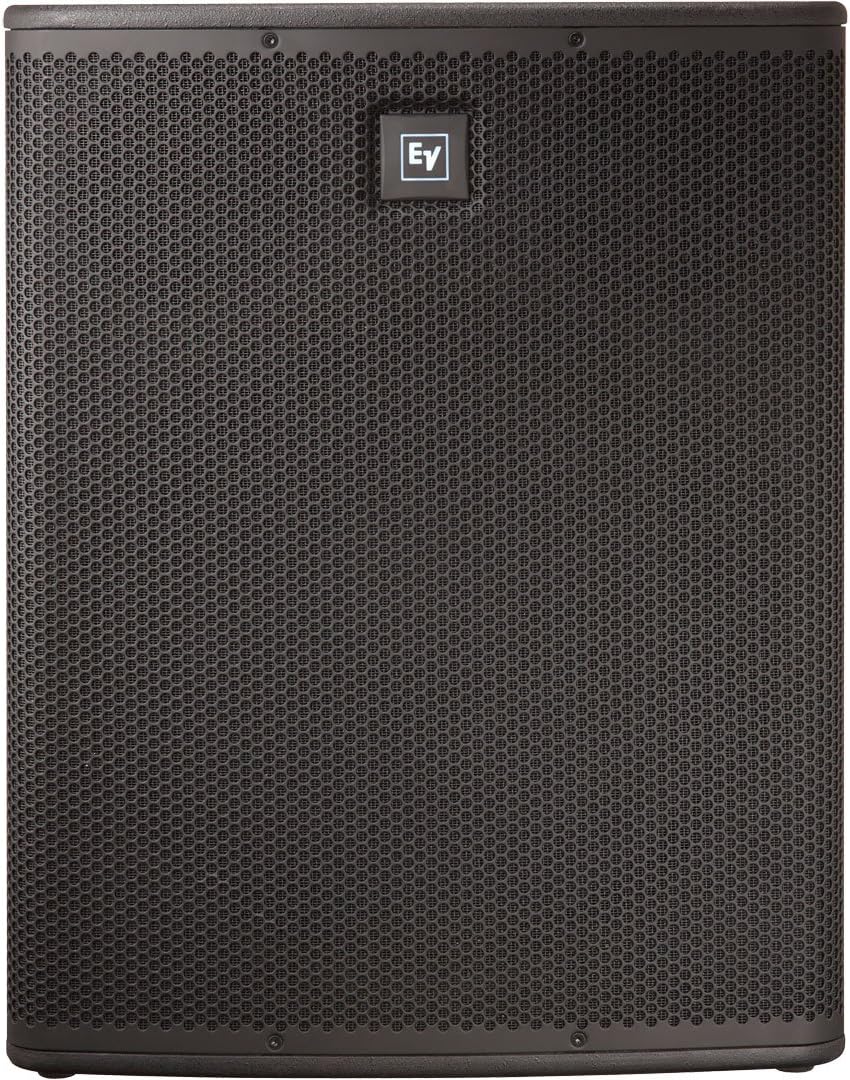

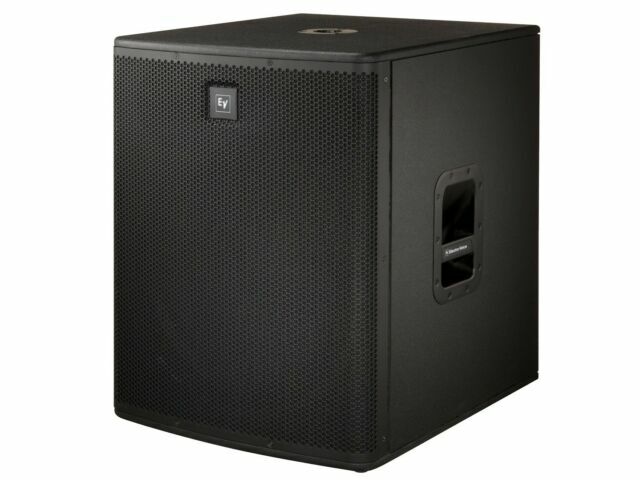

Electro-Voice ELX118 18″ Passive Subwoofer

Product Description

The ELX118 is a professional-grade passive subwoofer engineered to deliver thunderous low-frequency impact in live sound, club, and installation environments. Its high-efficiency EVS-18K 18″ long-excursion woofer reproduces bass down to 35 Hz with tight control and minimal distortion. Housed in a rugged, internally braced 15 mm plywood cabinet, the ELX118 handles 400 W AES (1 600 W peak) and achieves up to 134 dB SPL, making it the perfect partner for ELX112/ELX115 full-range speakers or any PA rig in need of extra low-end punch.

Key Features

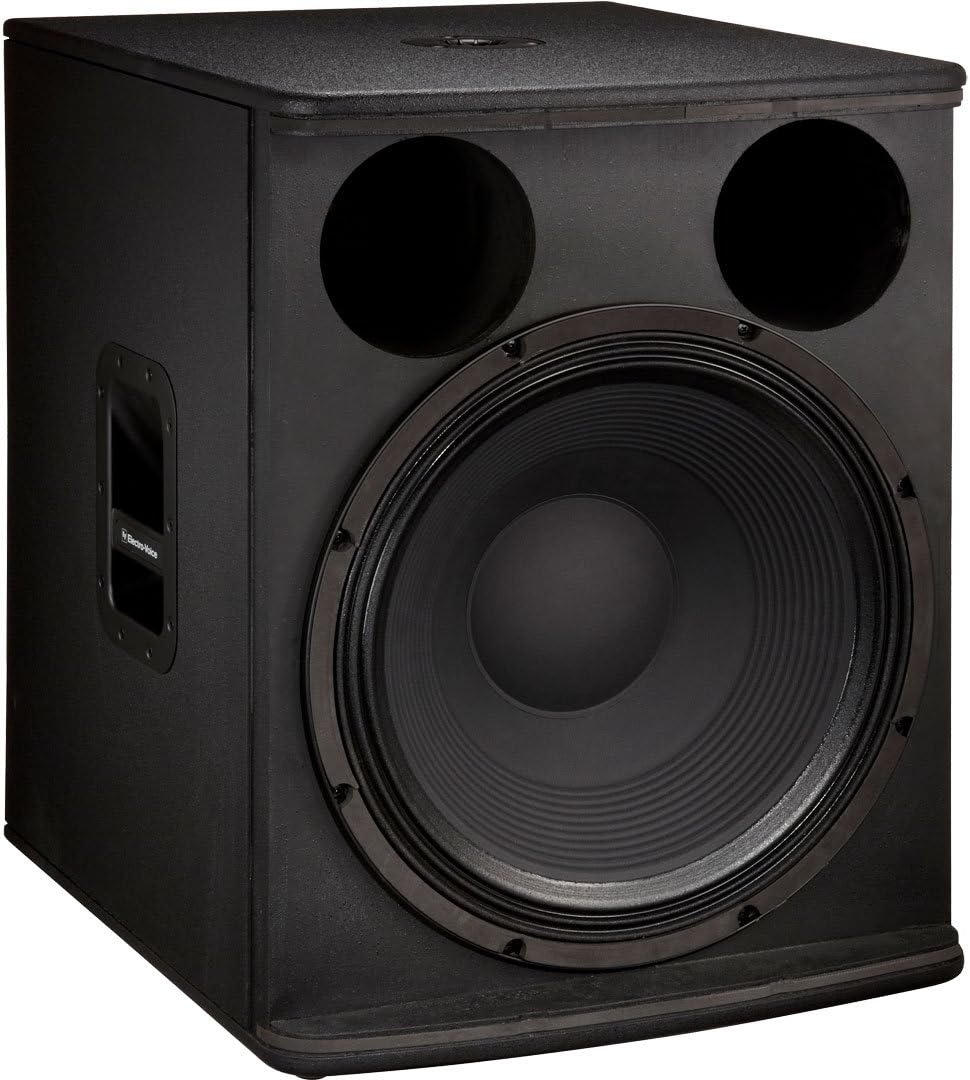

• EVS-18K 18″ long-excursion woofer for deep, accurate bass

• Frequency response: 50 Hz–100 Hz (–3 dB), 35 Hz–200 Hz (–10 dB)

• Power handling: 400 W AES continuous / 1 600 W peak

• Maximum SPL: 134 dB peak @ 1 m

• Sensitivity: 96 dB SPL (1 W/1 m)

• 9-ply, 15 mm internally braced plywood enclosure with black textured finish

• Integrated 35 mm pole-mount socket for flying or stacking full-range boxes

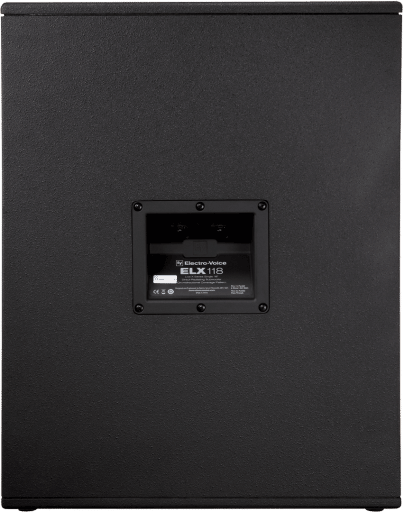

• Dual NL4 Speakon® connectors for secure input and link-through wiring

• Live X stacking points for stable, safe subwoofer stacks
