Need help before checkout?When you’re setting up sound for a church service, school function or live event, you want control over what each part of your speaker system receives. The dbx 234xs Kenya PA crossover separates your audio signal into frequency bands, giving you a practical way to configure a multi-way sound system.
Choose stereo 2-way or 3-way operation, or switch to mono 4-way for a different system arrangement. Adjustable crossover frequencies let you set the dividing points between bands, while individual output controls help you balance their levels. It’s hands-on control for operators who want to understand and adjust their signal path.
Quick specs
| Specification | Details |
|---|---|
| Operating modes | Stereo 2-way/3-way or mono 4-way |
| Filter type | Linkwitz-Riley, 24 dB/octave |
| Inputs | 2 × XLR, pin 2 hot |
| Outputs | 6 × XLR, pin 2 hot |
| Adjustable frequency ranges | 45–960 Hz or 450 Hz–9.6 kHz using the ×10 setting, depending on band and mode |
| Front-panel switches | Low cut and phase invert |

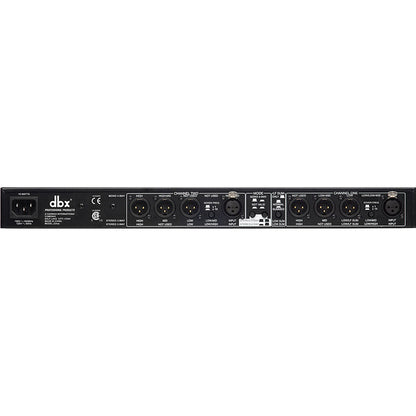

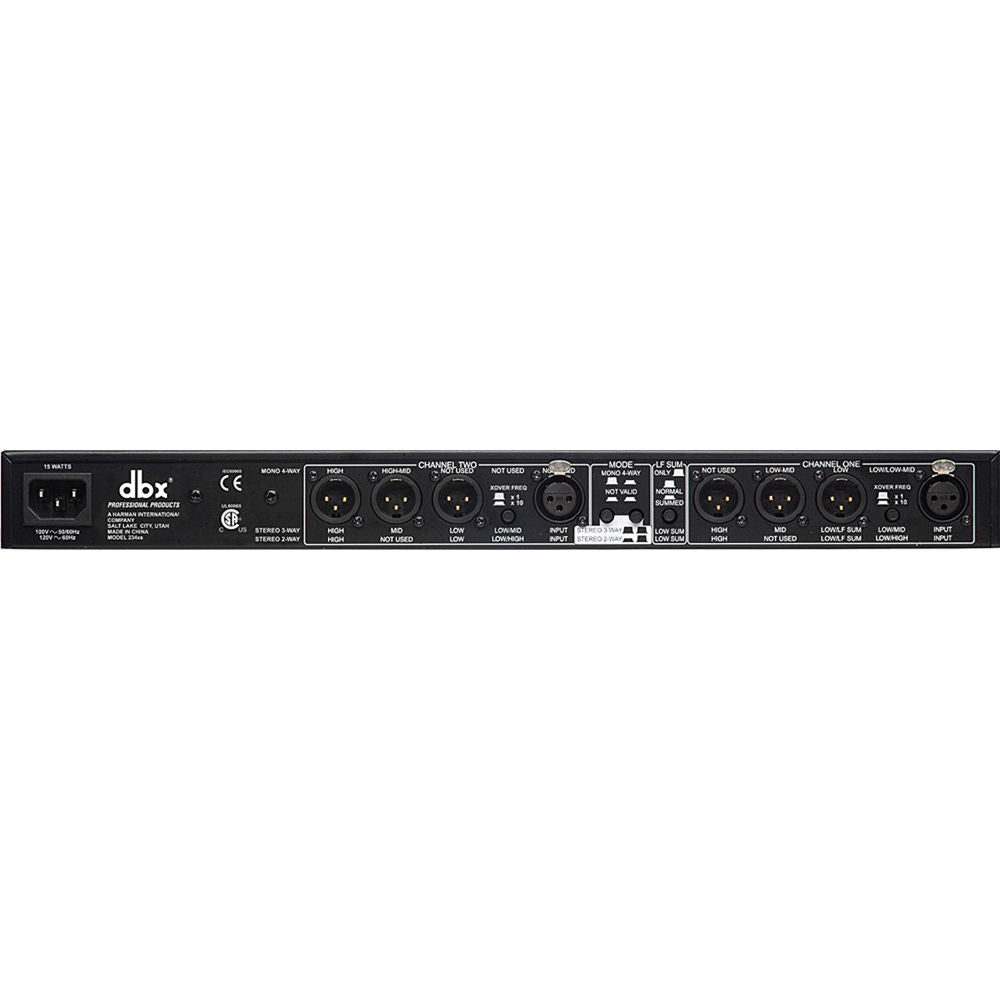

| Rear-panel switches | ×10 frequency range, mode and LF sum |
| Dynamic range | Greater than 106 dB, unweighted |
| Dimensions | 483 × 175 × 45 mm |
| Weight | 1.8 kg |
| Power consumption | 15 W |
Practical control for your PA setup

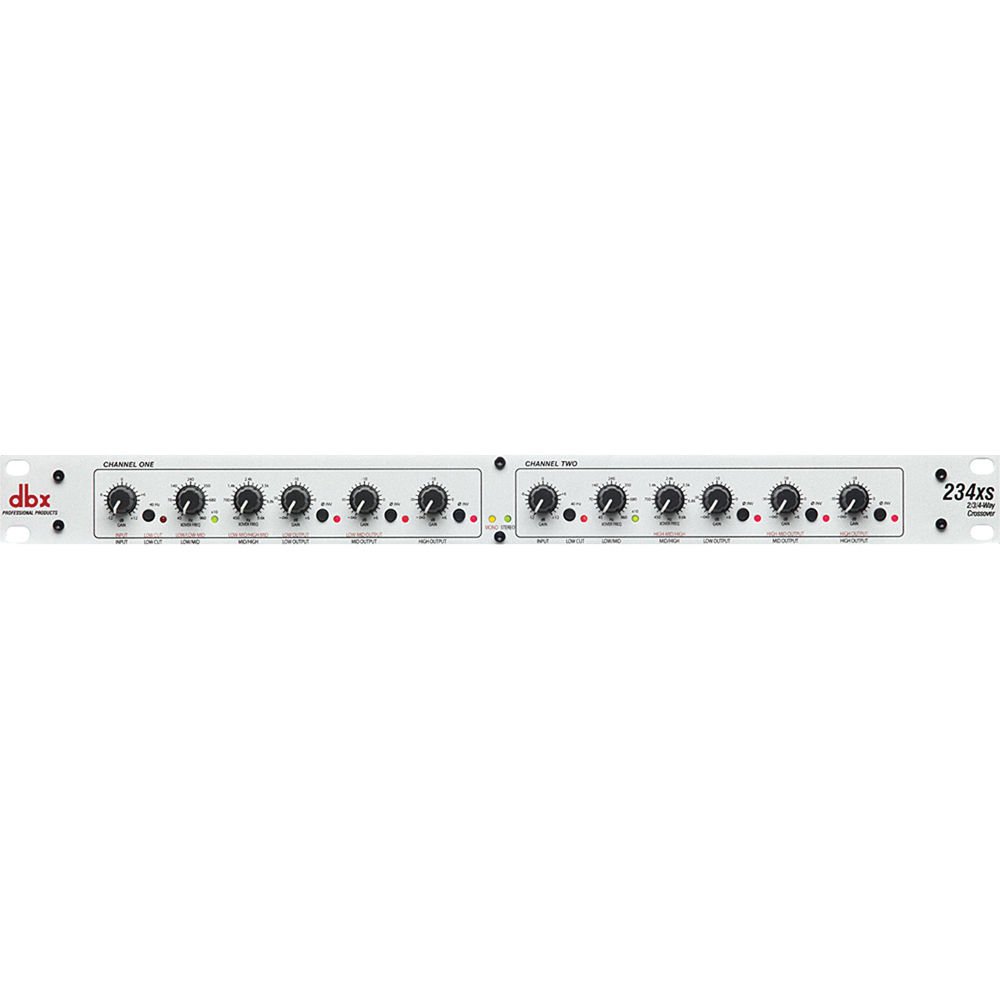

For Kenyan churches, event teams and school sound operators considering the dbx 234xs Kenya, the key benefit is flexibility. You can configure the crossover around your speaker arrangement rather than being limited to one operating mode. The front-panel controls keep frequency and level adjustments accessible during system setup.
The low-frequency sum option provides another routing choice, while phase-invert controls allow polarity adjustments. These controls support careful system configuration, but they do not replace correct speaker selection, amplifier matching or sound-system tuning.
Before choosing your unit
The dbx 234xs Kenya is a crossover, not a power amplifier. Plan your signal routing, amplification and speaker connections as a complete system. Choose crossover settings appropriate to your loudspeakers rather than treating every frequency setting as suitable for every cabinet.
Confirm the actual unit’s mains-voltage rating before purchase or connection. Voltage compatibility should be checked on the unit’s rating label, not assumed from its model name.
Frequently asked questions
Can it run a stereo 3-way system?
Yes. The supplied specifications list stereo 2-way and stereo 3-way operation, with a switchable mono 4-way mode.
What connections does it use?
It has two XLR inputs and six XLR outputs, with pin 2 hot.
Does it power passive speakers directly?
No. It divides the audio signal into frequency bands. Passive speakers still require suitable amplification.
What does the ×10 switch do?
It changes the applicable adjustable range from 45–960 Hz to 450 Hz–9.6 kHz, depending on the selected band and operating mode.
Is it automatically compatible with local mains power?
Do not assume that. Confirm the voltage rating of the specific unit before connecting it.
