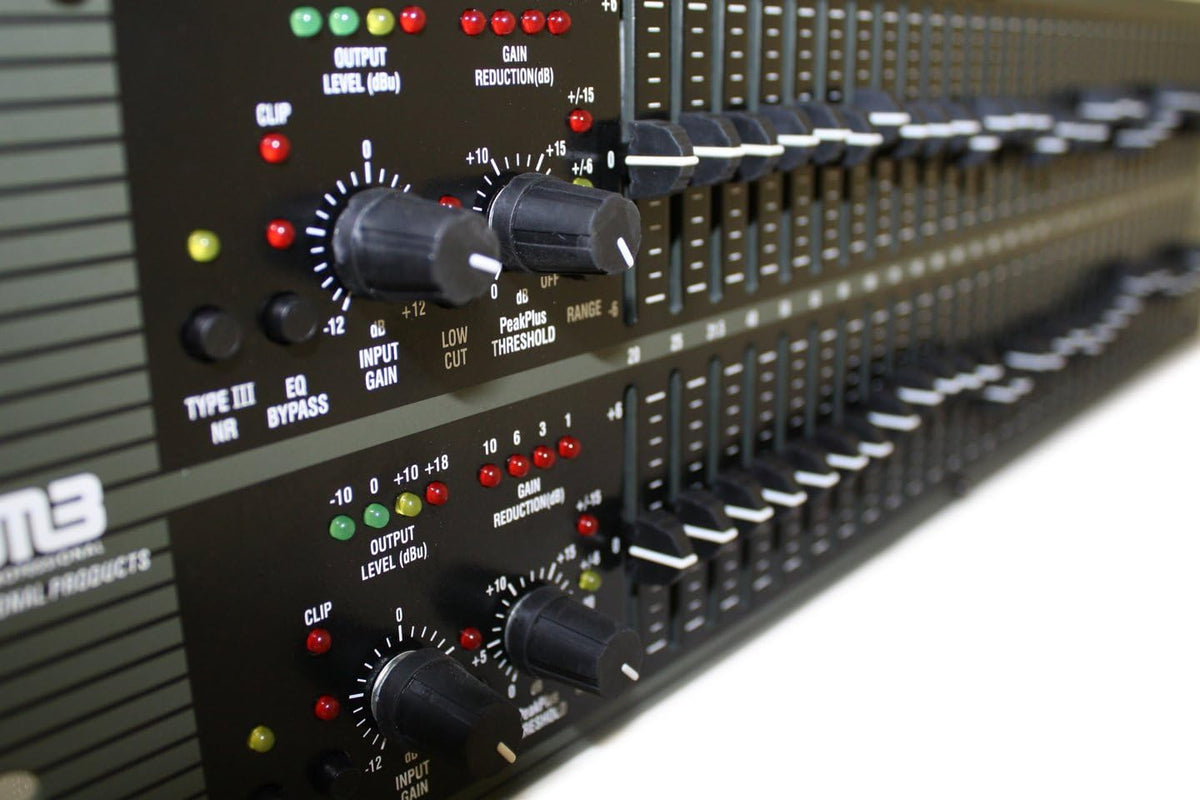

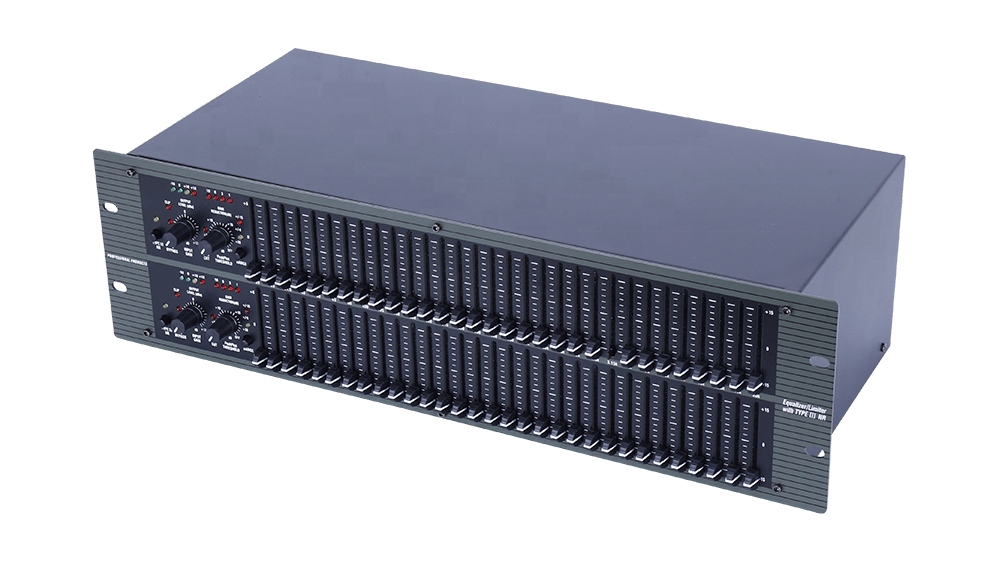

The DBX 2231 graphic equalizer is the professional standard for precision frequency control in live sound, installed audio, and studio environments. Whether you're tuning a church PA, dialling in a concert rig, or refining a studio monitor chain, the DBX 2231 graphic equalizer delivers the transparency and control that audio engineers rely on.

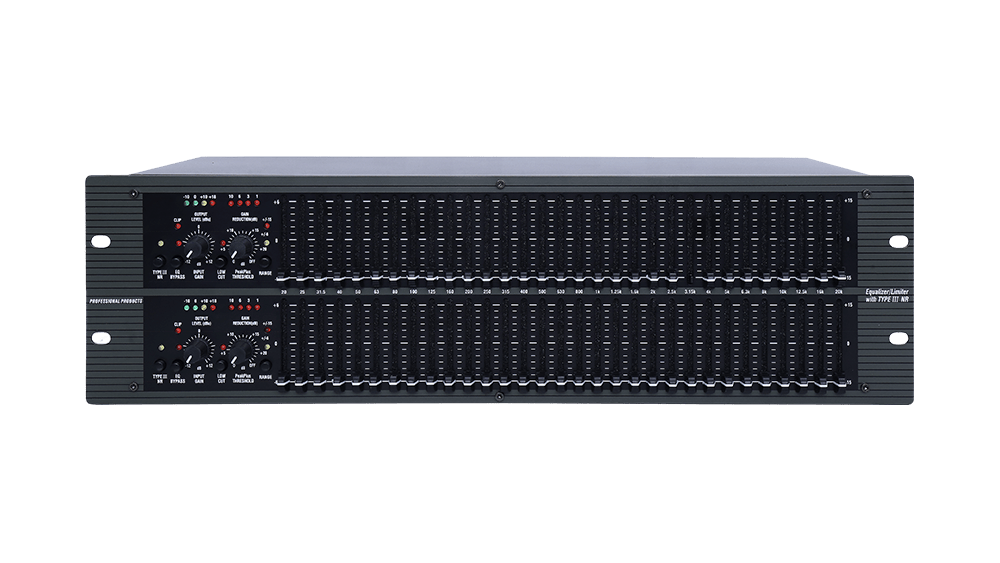

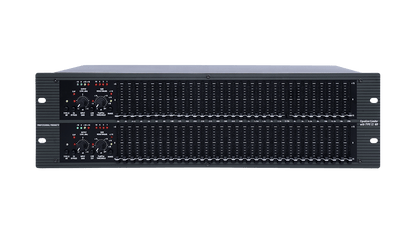

Each channel of the DBX 2231 graphic equalizer features 31 bands of 1/3-octave control, giving you surgical precision across the full audible spectrum — from sub-bass rumble to high-frequency air. The switchable ±6 dB / ±15 dB boost/cut range lets you work with fine corrections or dramatic shaping depending on the application.
PeakPlus™ Limiter
The integrated PeakPlus™ Limiter provides adjustable threshold protection from 0 dBu to +24 dBu, safeguarding your speakers and amplifiers from transient peaks and unexpected signal spikes — critical in live and rental environments.
Type III™ Noise Reduction
DBX's proprietary Type III™ Noise Reduction improves signal-to-noise ratio by up to 20 dB, keeping your signal path clean and your mix transparent even at high gain settings.
Connectivity

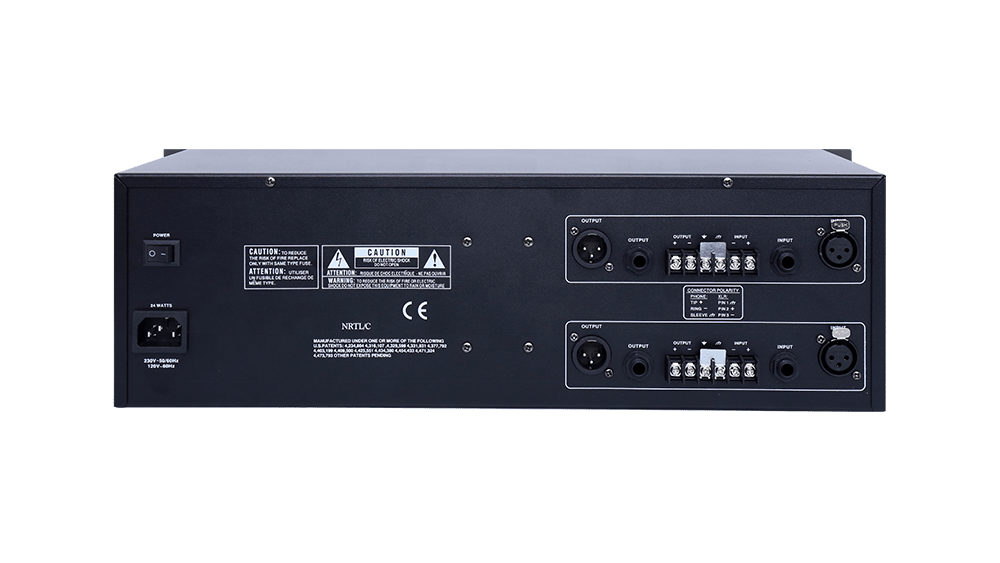

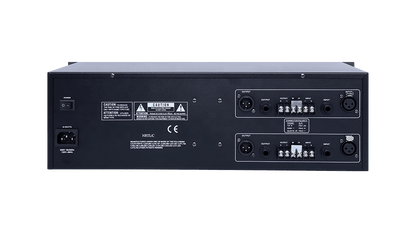

The DBX 2231 graphic equalizer accepts balanced XLR, ¼″ TRS, and barrier-strip connections on both inputs and outputs, making it compatible with virtually any professional audio signal chain. A +12 dB input gain control and 4-segment LED metering complete the front-panel workflow.
Built for Professional Use
The rugged metal chassis and non-conductive nylon sliders are engineered for the demands of touring, installation, and rental. This is a unit built to last — and to perform consistently night after night.
Available in Kenya — Same-Day Nairobi Delivery
Order your DBX 2231 graphic equalizer today and get same-day delivery within Nairobi. M-Pesa checkout available. Contact us for bulk or institutional pricing for churches, schools, and event companies across East Africa.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DBX 2231 |
| Channels | 2 (dual-channel) |
| Bands | 31 per channel (1/3-octave) |
| Boost/Cut Range | ±6 dB or ±15 dB (switchable) |
| Limiter | PeakPlus™ (0 dBu to +24 dBu) |
| Noise Reduction | Type III™ |
| Input Gain | +12 dB |
| I/O | XLR, ¼″ TRS, Barrier Strip |
| Metering | 4-segment LED ladders |
| Warranty | 1 Year |
