Product Description

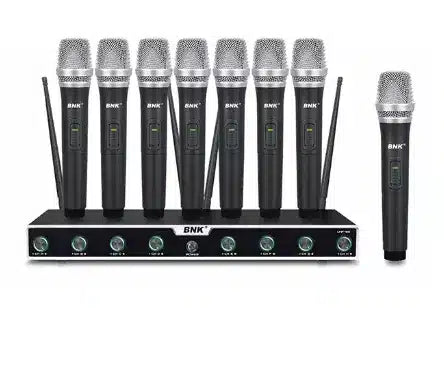

The BNK 8800 is a professional-grade wireless microphone system that includes eight dynamic handheld transmitters and a single 8-channel UHF receiver. Operating across 500–700 MHz with a cardioid pickup pattern, it delivers crystal-clear audio from 50 Hz to 15 kHz and supports a working range of up to 50 meters ideal for live performances, karaoke, conferences, and worship services.

The metal-chassis receiver features bright LED displays for real-time monitoring of frequency, signal strength, and microphone battery life. Outputs include balanced XLR and unbalanced ¼″ TRS jacks, while onboard RF sensitivity of better than –80 dB ensures stable, interference-free operation. The unit runs on a 12 V DC, 1 000 mA power supply for reliable, continuous use.

Each handheld transmitter sports a rugged metal body with its own LED display, a dynamic capsule optimized for vocal clarity, and RF output under 10 mW with ±22 kHz deviation. Transmitters are powered by two AA batteries (1.5 V alkaline or 1.2 V rechargeable), offering extended runtime for long events.

Key Features

• Eight independent UHF channels (500–700 MHz) with interference-free operation

• Wide audio frequency response: 50 Hz–15 kHz for full-range vocal reproduction

• Up to 50 m transmission range under typical conditions

• Receiver RF sensitivity better than –80 dB for robust signal pickup

• Balanced XLR and unbalanced ¼″ TRS outputs for flexible connectivity

• Metal receiver and handheld housings with integrated LED displays

• Dynamic microphone capsules and cardioid polar pattern to reject background noise

• Transmitter RF output < 10 mW with ±22 kHz frequency deviation

• Powered by DC 12 V/1 000 mA (receiver) and two AA batteries (transmitters)

Technical Specifications
