Behringer U-PHORIA UMC204HD 2-in/4-out USB Audio Interface
Behringer U-PHORIA UMC204HD 2-in/4-out USB Audio Interface
Share
Couldn't load pickup availability
Product Description
The UMC204HD is a bus-powered USB 2.0 audio interface providing two MIDAS-designed mic preamps with +48 V phantom power, four balanced outputs, MIDI I/O, and a dedicated headphone output for ultra-low-latency recording and playback up to 24-bit/192 kHz. It’s a compact, rack-mountable solution for home studios, podcasting, and live streaming, offering class-compliant operation on Mac and PC without driver installation.
Key Features
-

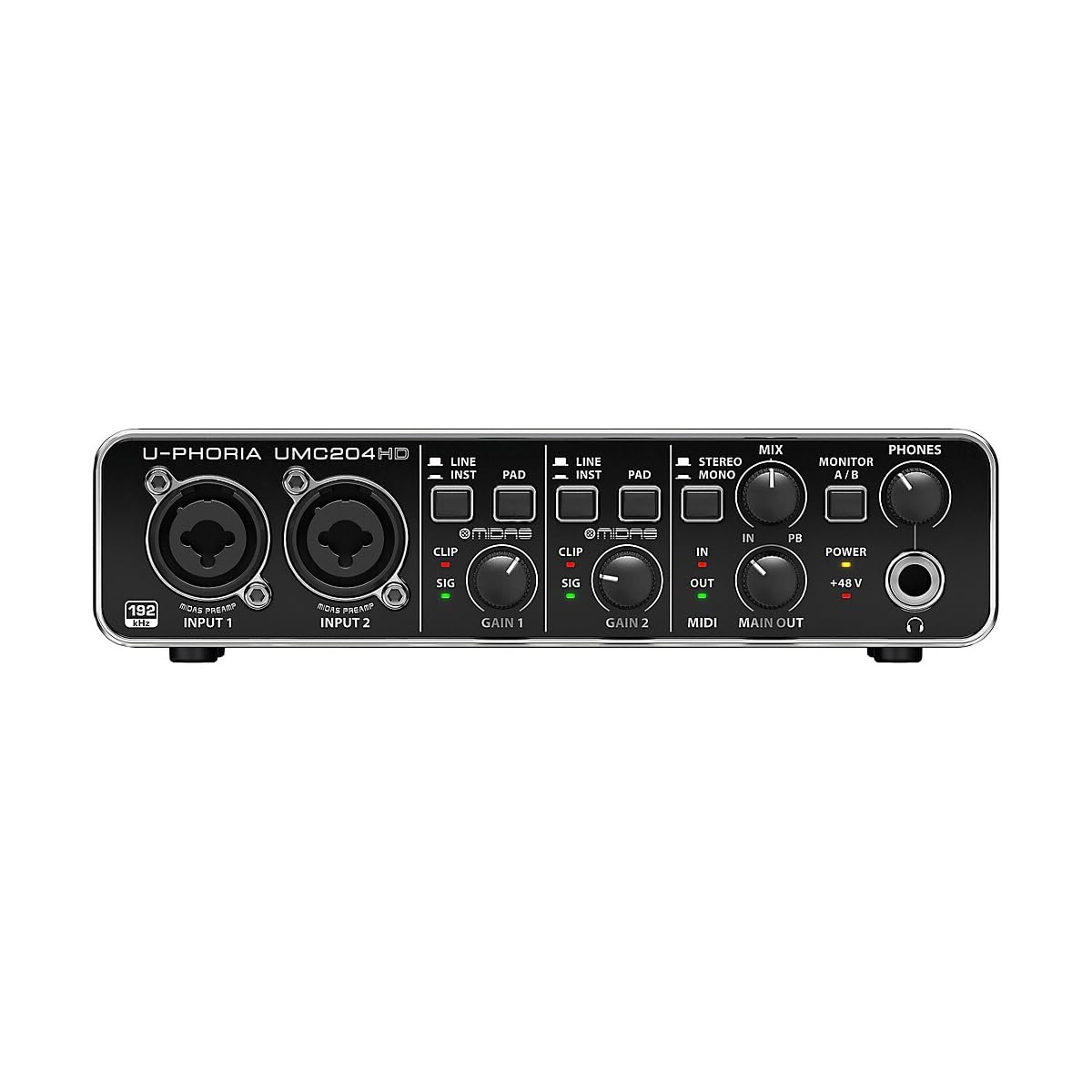

Two MIDAS-designed mic preamps with +48 V phantom power for vocals and instruments
-
2-in/4-out USB 2.0 interface supporting up to 24-bit/192 kHz resolution
-
MIDI In/Out port for external controller and synth integration
-

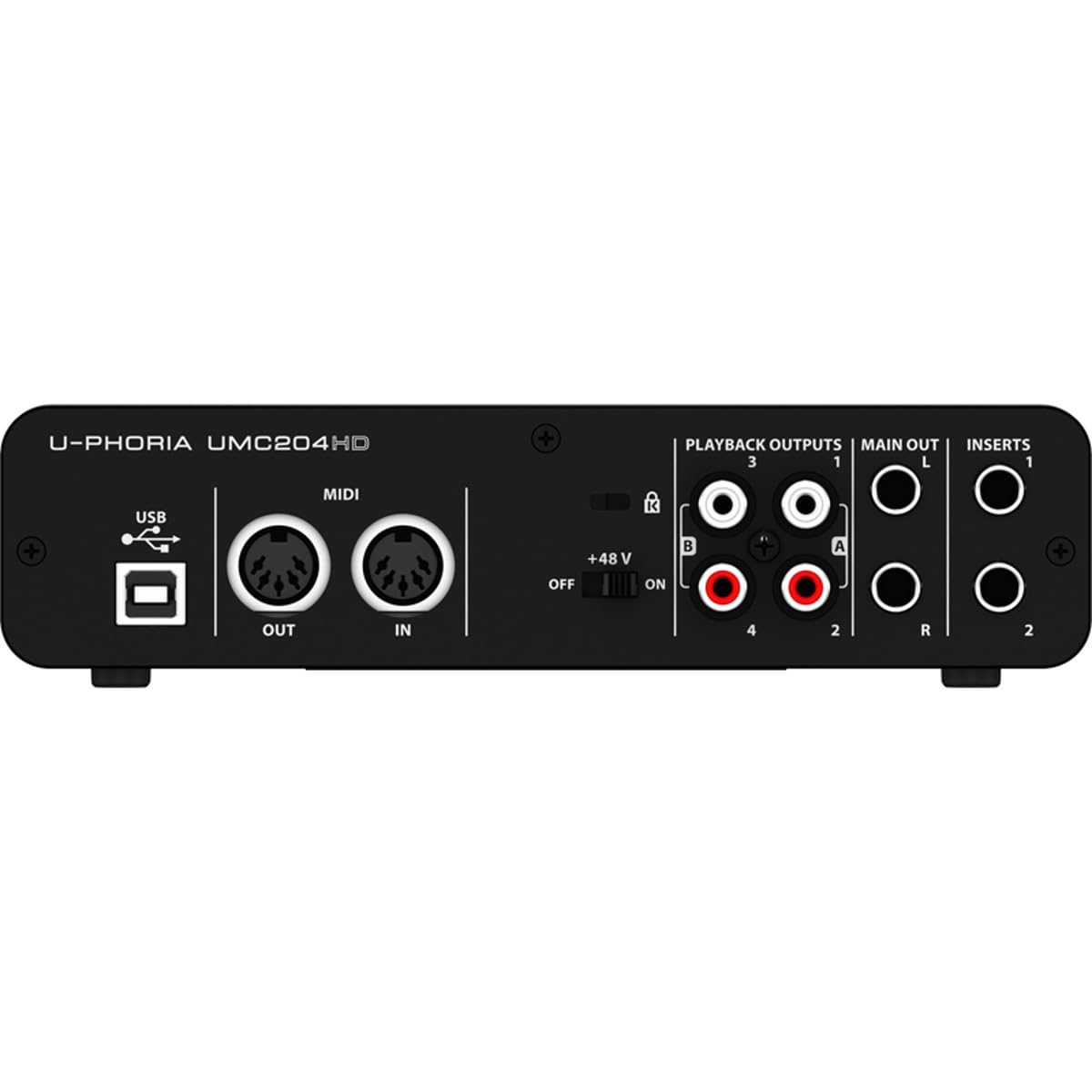

Four balanced TRS outputs for flexible monitor and outboard routing
-
Dedicated headphone output with level control for direct monitoring
-
Class-compliant, driver-free operation on Mac and PC for ultra-low latency recording and playback
Technical Specifications
| Specification | Detail |
|---|---|
| Audio Resolution | 24-bit / 192 kHz |
| Mic Preamps | 2 × MIDAS-designed; +48 V phantom power |
| Inputs | 2 × combo XLR/TRS |
| Line Outputs | 4 × balanced ¼″ TRS |
| Headphone Output | 1 × ¼″ TRS with level control |
| MIDI I/O | 1 × MIDI In; 1 × MIDI Out (5-pin DIN) |
| USB Interface | USB 2.0 class-compliant; bus-powered |
| Latency | Ultra-low (<6 ms typical) |
| Power | USB bus-powered; no external PSU |
| Form Factor | Desktop/rack-mountable metal chassis |
| Dimensions (W × D × H) | 230 × 185 × 42 mm |
| Weight | 0.85 kg |
