Allen & Heath ME-1 40-Channel Personal Monitor Mixer

Product Description

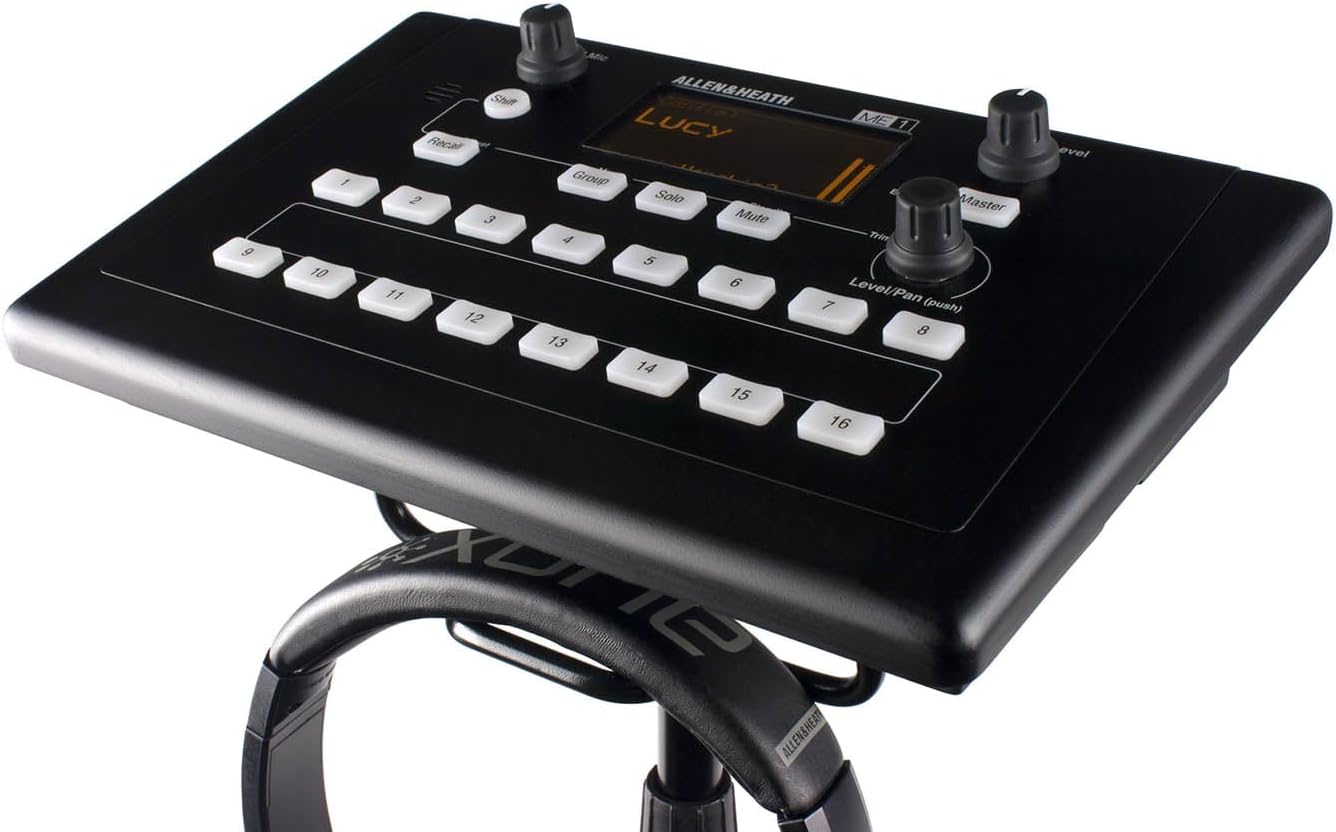

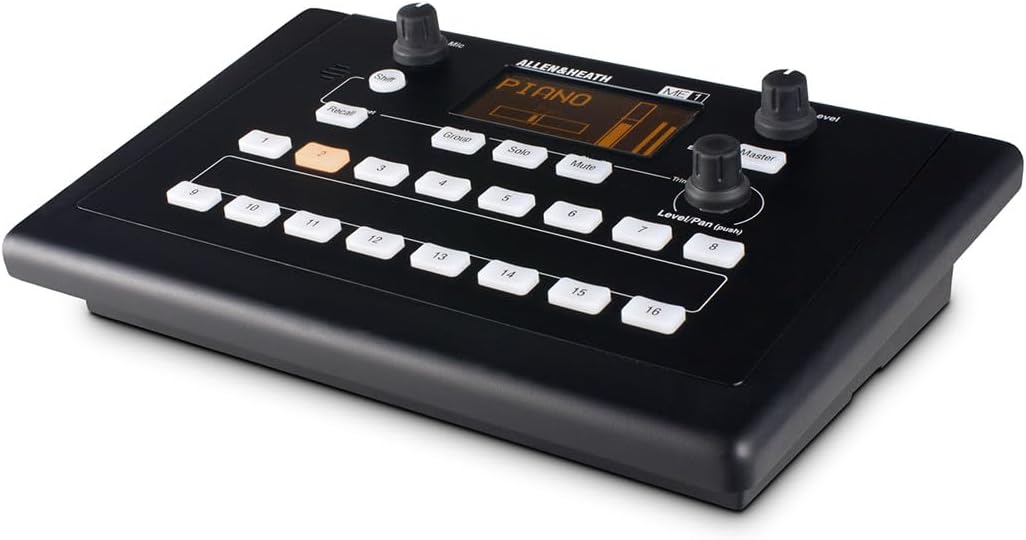

The Allen & Heath ME-1 is a sophisticated personal monitor mixer that gives performers precise, hands-on control of their own in-ear and headphone mixes. It provides access to up to 40 audio sources—ranging from individual channels to grouped submixes—via a simple, musician-friendly interface. An easy-to-read OLED screen, 16 assignable keys, and one-knob control ensure you can craft and recall your perfect mix in seconds. Power over Ethernet (PoE) capability and an integrated ambient mic make the ME-1 neat, tidy, and seamless to deploy on stage or in the studio2.

Key Features

• Control up to 40 sources with level and pan for each input or group, mapped across 16 user-assignable keys

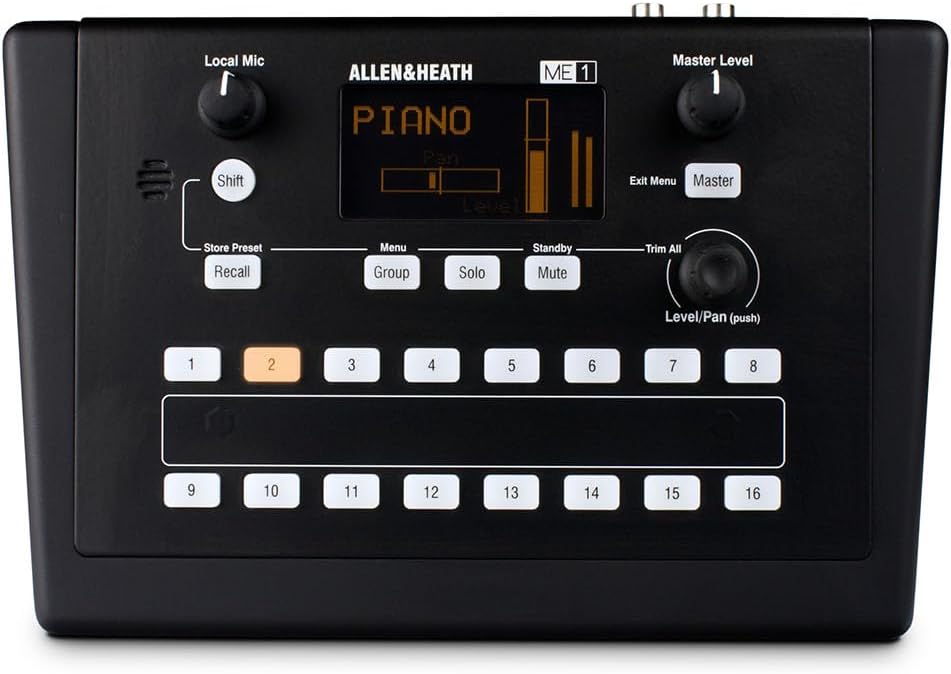

• Dimmable OLED display shows source names, levels, pan position, and meters for intuitive monitoring

• Sixteen onboard preset slots store levels, pans, and mutes; presets exportable/importable via USB

• Integrated limiter adjustable from –24 dB to 0 dB protects hearing from unexpected peaks

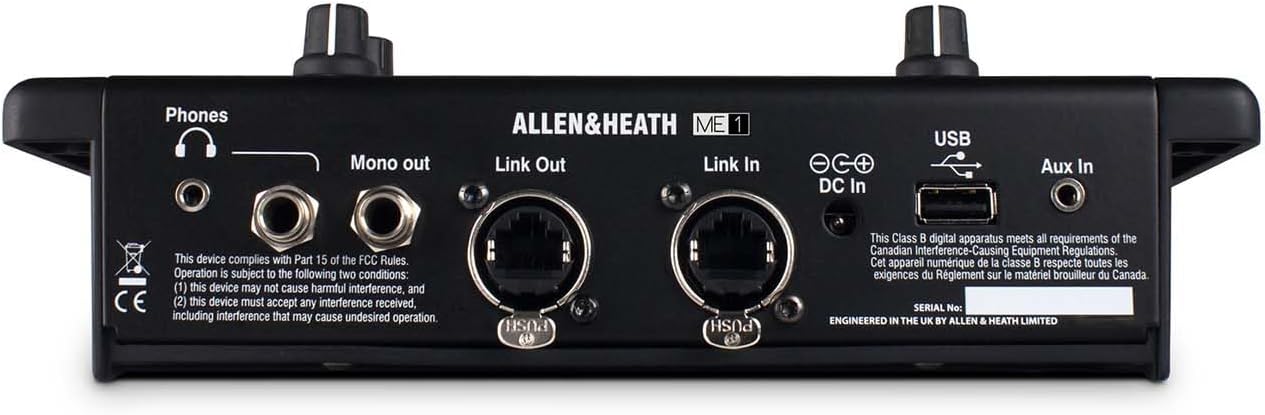

• Dual headphone outputs (¼″ TRS and 3.5 mm mini-jack) drive all popular headphones and in-ears with ample headroom

• PoE power option reduces stage cabling; compatible with industry-standard PoE switches or optional 48 V DC adapter

• Top-panel ambient mic keeps performers connected to stage sound and audience without removing their ear pieces

• One-knob master 3-band EQ for quick tonal adjustment of the overall mix

• Automatic source naming when connected to dLive, Avantis, or SQ mixers over Ethernet for plug-and-play setup
