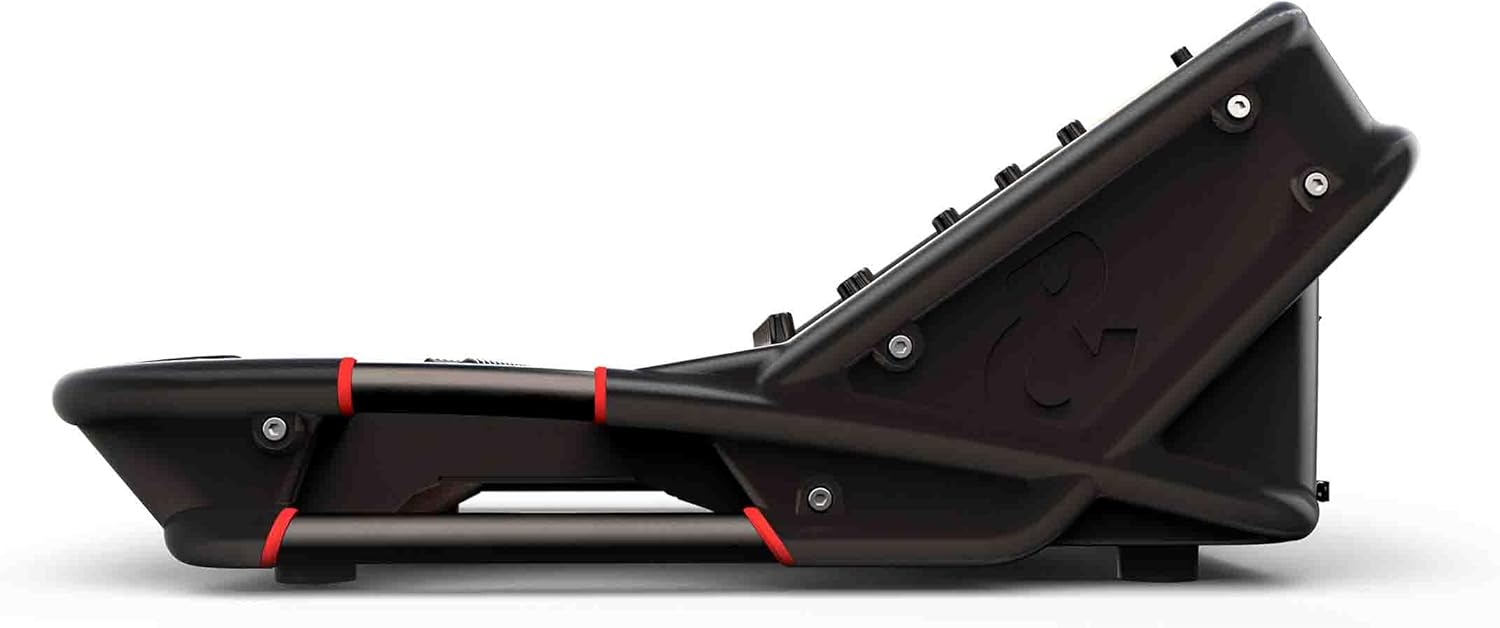

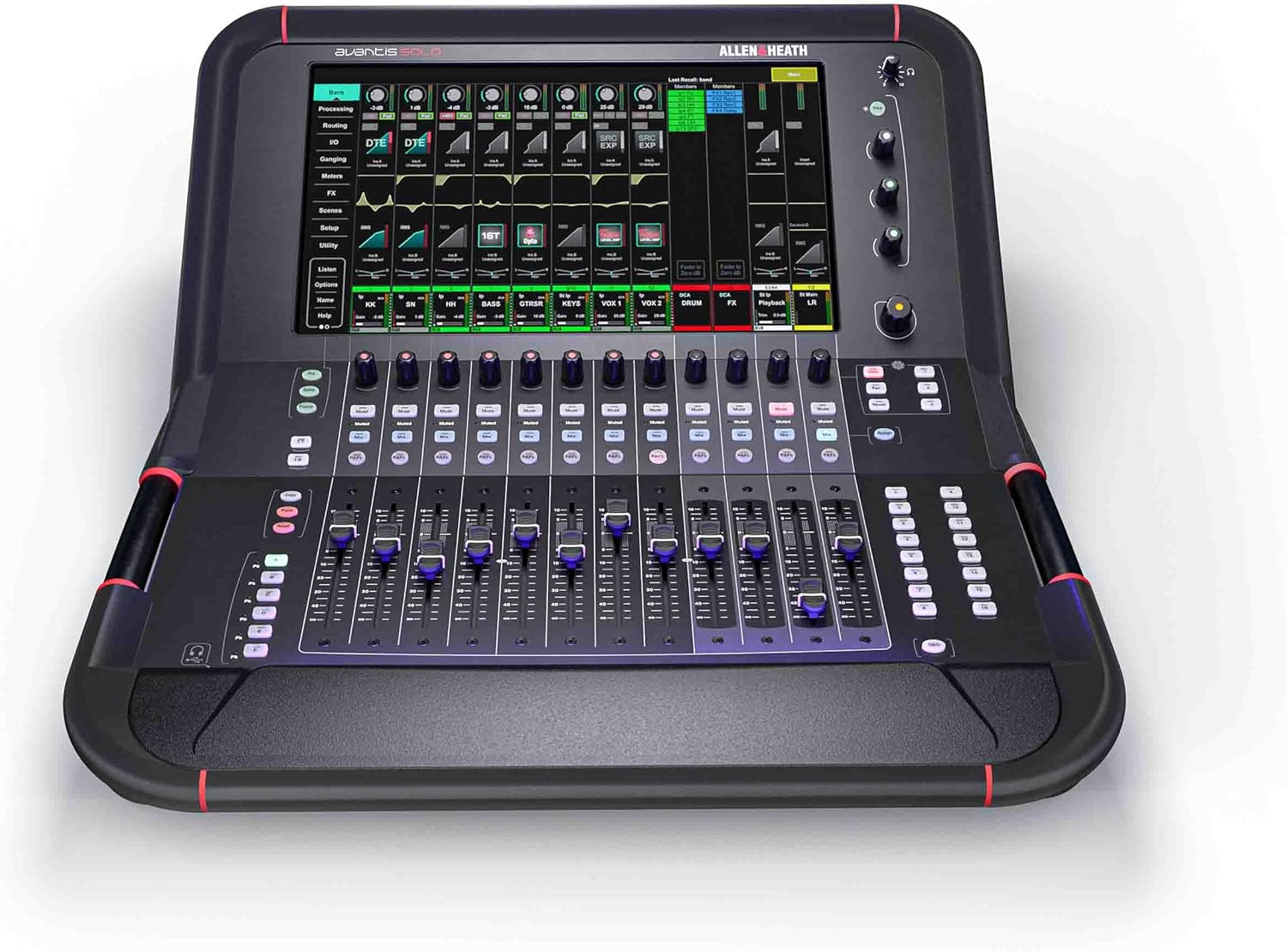

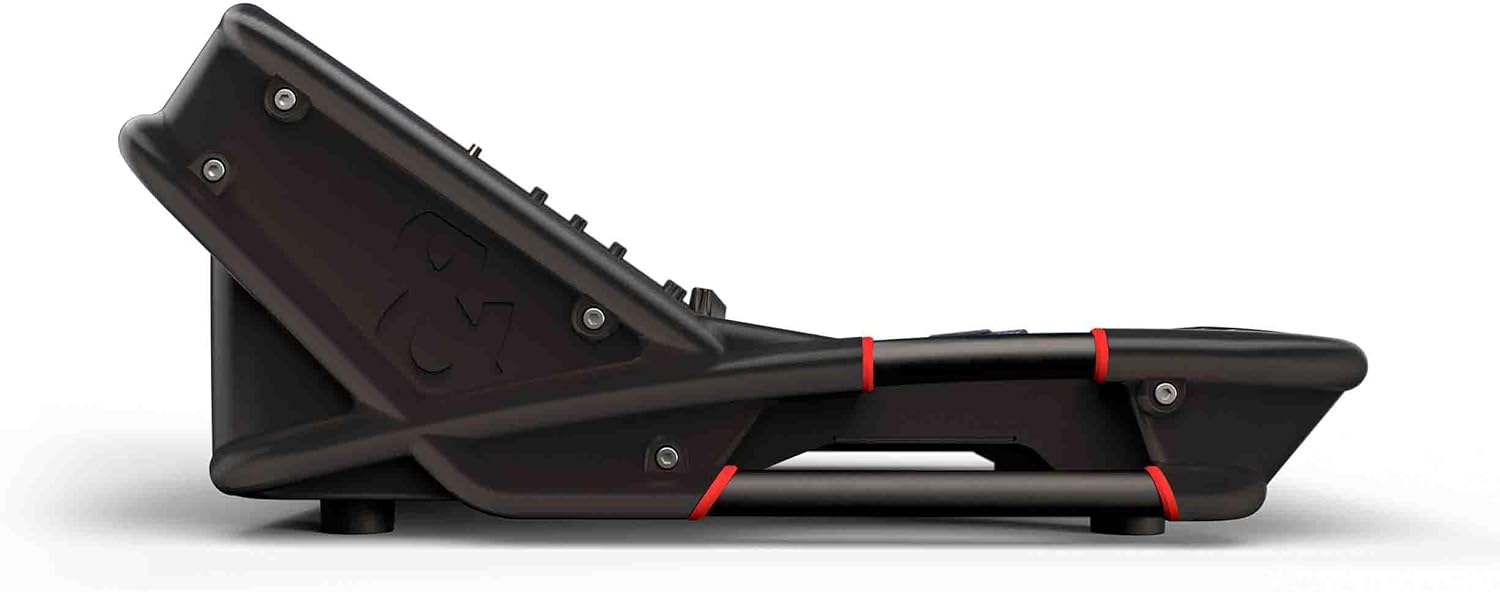

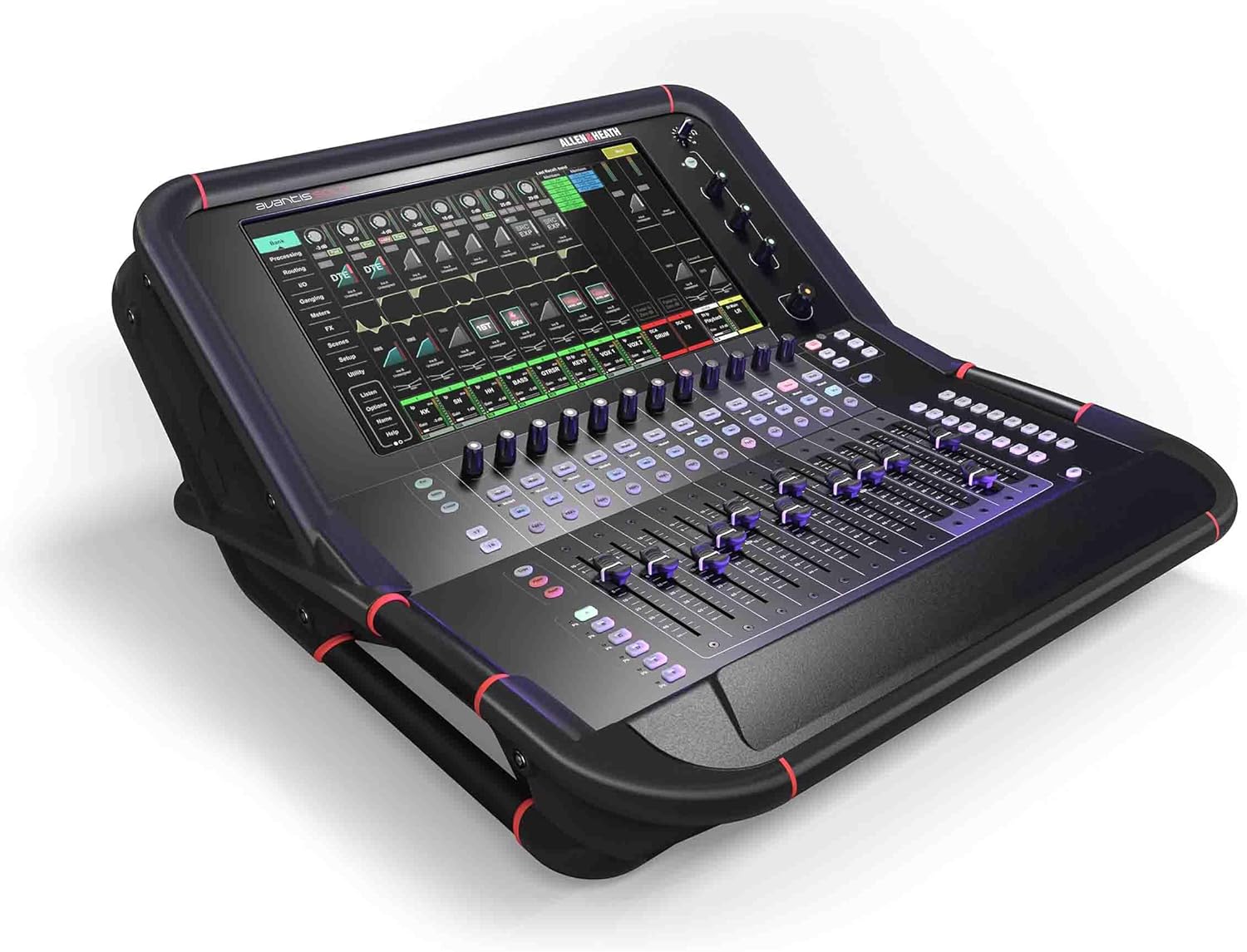

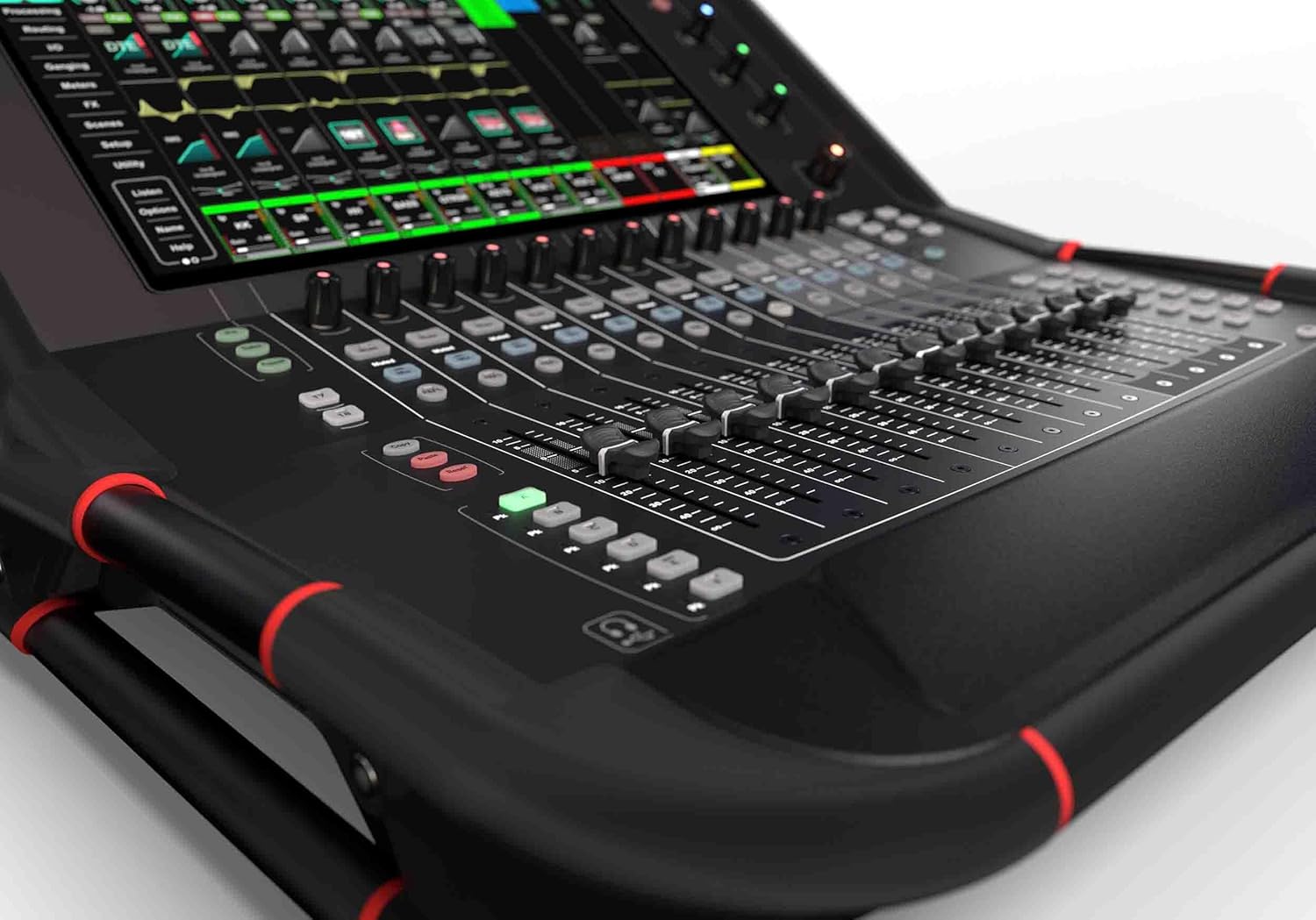

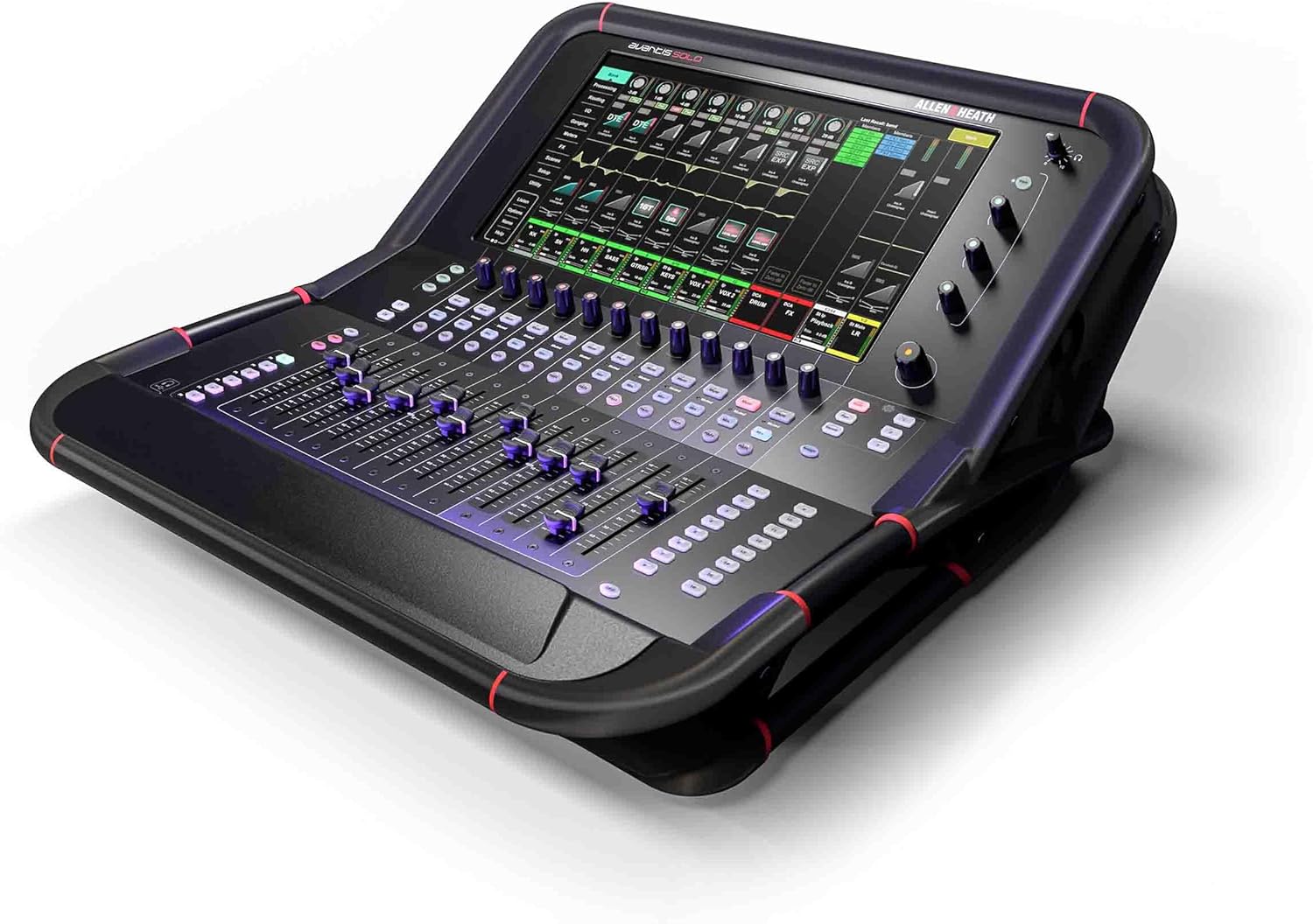

Allen & Heath Avantis Solo 64-Channel Digital Mixer

Product Description

The Avantis Solo delivers Allen & Heath’s flagship 64-input/42-bus mix engine in a compact footprint, powered by a 96 kHz XCVI FPGA core with ultra-low 0.7 ms latency. A single 15.6″ Full-HD capacitive touchscreen anchors an intuitive Continuity UI, complemented by 18 assignable SoftKeys and 12 motorized faders (6 banks) for lightning-fast access to channels and mix layers. With on-board dPack upgrade for dLive-style compressors and valve preamps, 12 RackExtra FX slots, and dual 128×128 audio-networking ports, Avantis Solo scales from houses of worship and theatres to broadcast and corporate AV applications.

Key Features

• 64 fully configurable input channels and 42 mix buses

• 96 kHz XCVI FPGA processing with 0.7 ms total system latency

• Single 15.6″ Full-HD touchscreen with Continuity UI for seamless physical-to-screen workflow

• 18 assignable SoftKeys and 12 motorized 100 mm faders (6 banks) with total recall

• dPack option unlocks per-channel zero-latency compressors, Deep Compressors, valve preamps, and Dyn8 processing

• 12 stereo RackExtra FX slots with dedicated returns for reverb, delay, and modulation effects

• Two 128×128 I/O ports supporting Dante, Waves, gigaACE, SuperMADI, and fibreACE cards

• 6 analog mic/line + 1 stereo AES inputs; 6 analog + 1 stereo AES outputs

• 16 DCA groups and fully assignable FX groups for instant submix control

• Road-tough metal chassis with rack-ears for installation or portable rigs.

Technical Specifications
