Allen & Heath Avantis 64-Channel / 42-Bus Digital Mixer

Product Description

The Avantis delivers 64 input channels and 42 configurable mix buses powered by Allen & Heath’s 96 kHz XCVI FPGA engine, achieving ultra-low 0.7 ms latency and rock-solid performance. It’s upgradeable with the dPack option to unlock flagship dLive processing, plus features 12 RackExtra FX slots and two 128×128 audio-networking ports for maximum expandability.

Choose between two form factors without compromise:

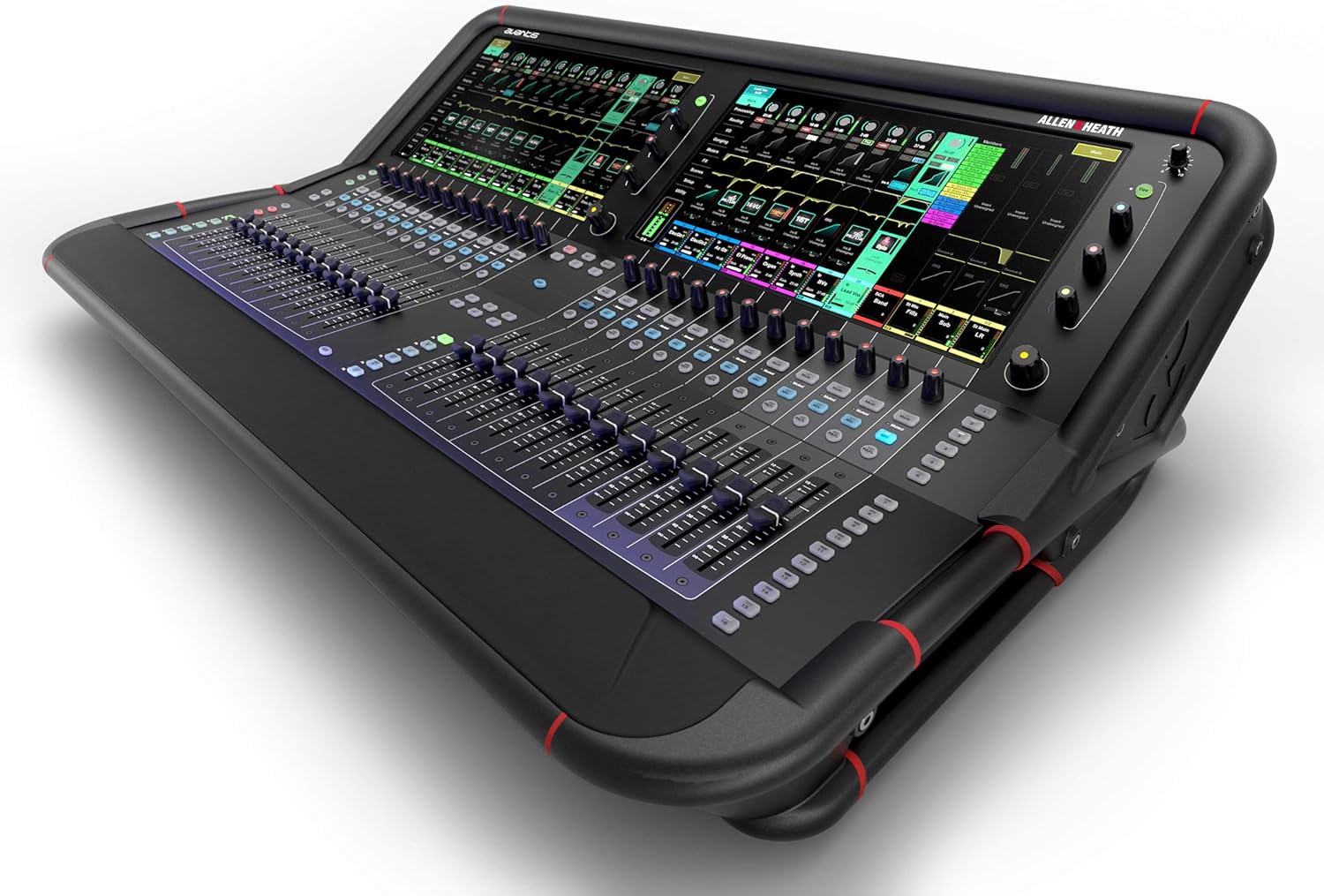

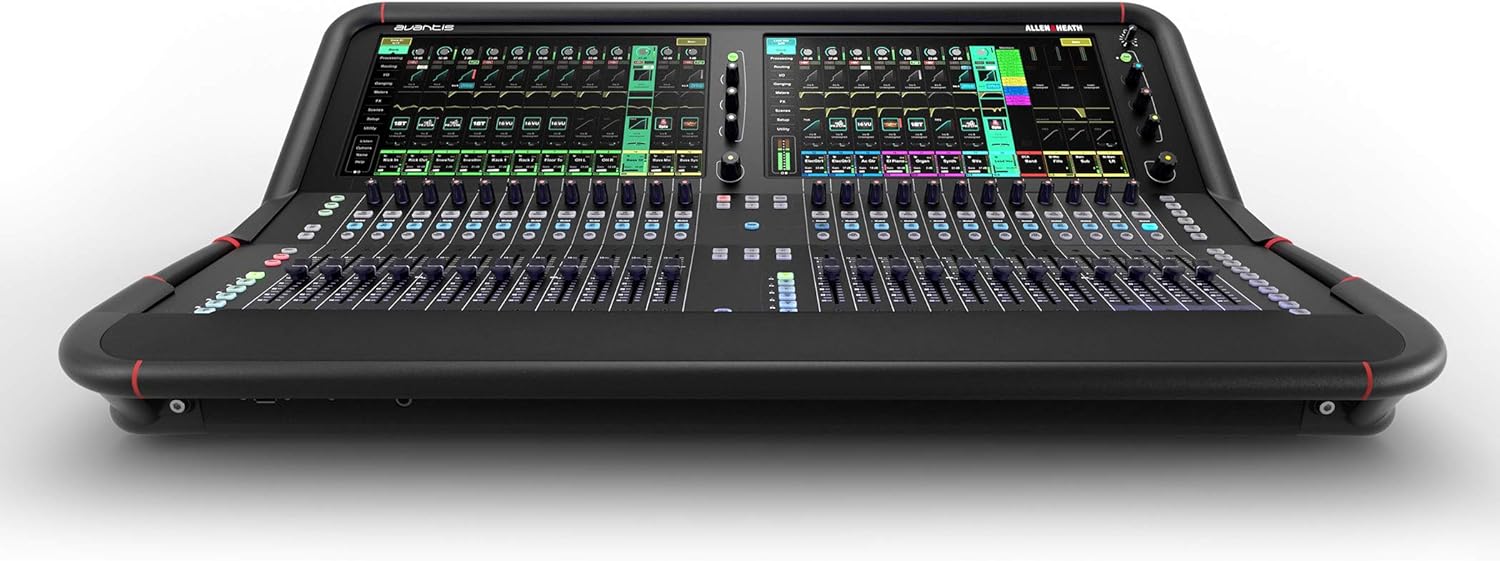

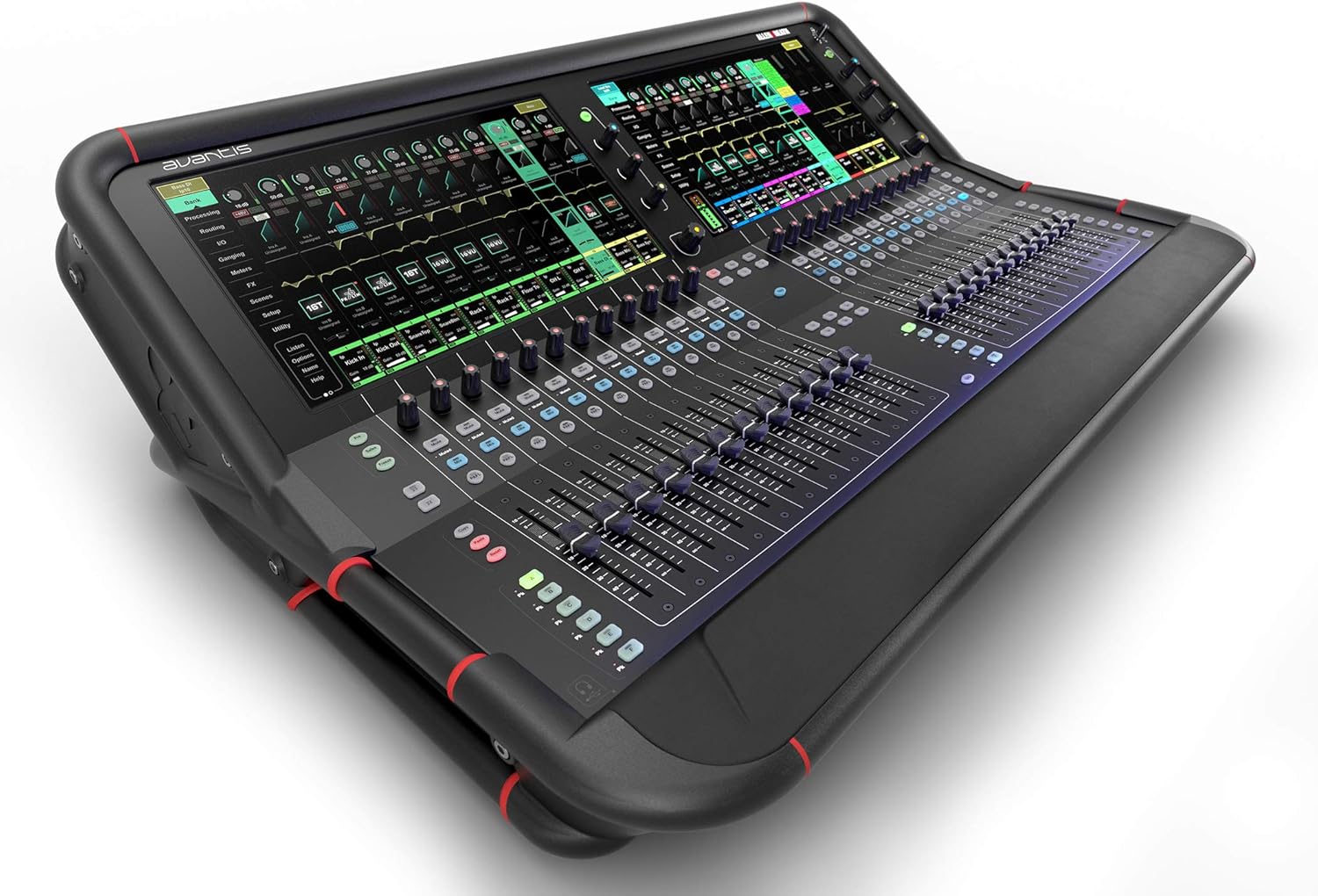

• Avantis with dual 15.6″ Full HD touchscreens, 24 assignable SoftKeys, 24 faders (6 layers), 12 analog + stereo AES inputs, and 12 analog + 2 stereo AES outputs.

• Avantis Solo with a single 15.6″ Full HD touchscreen, 18 SoftKeys, 12 faders (6 layers), 6 analog + stereo AES inputs, and 6 analog + stereo AES outputs.

Key Features

• 64 input channels and 42 fully configurable mix buses

• 96 kHz XCVI FPGA processing engine with 0.7 ms total system latency

• dPack upgrade for per-channel zero-latency compressors, Deep Compressors, valve preamps, and Dyn8 engines

• 12 RackExtra FX slots with dedicated stereo returns

• Two audio-networking I/O ports (128×128) supporting Dante, Waves, gigaACE, SuperMADI, and fibreACE cards

• 16 DCAs plus assignable SoftKeys and FX groups for instant control

• Continuity UI: capacitive touchscreens react to fader touch, FastGrab tab for instant EQ/FX access, and seamless physical-to-screen workflow

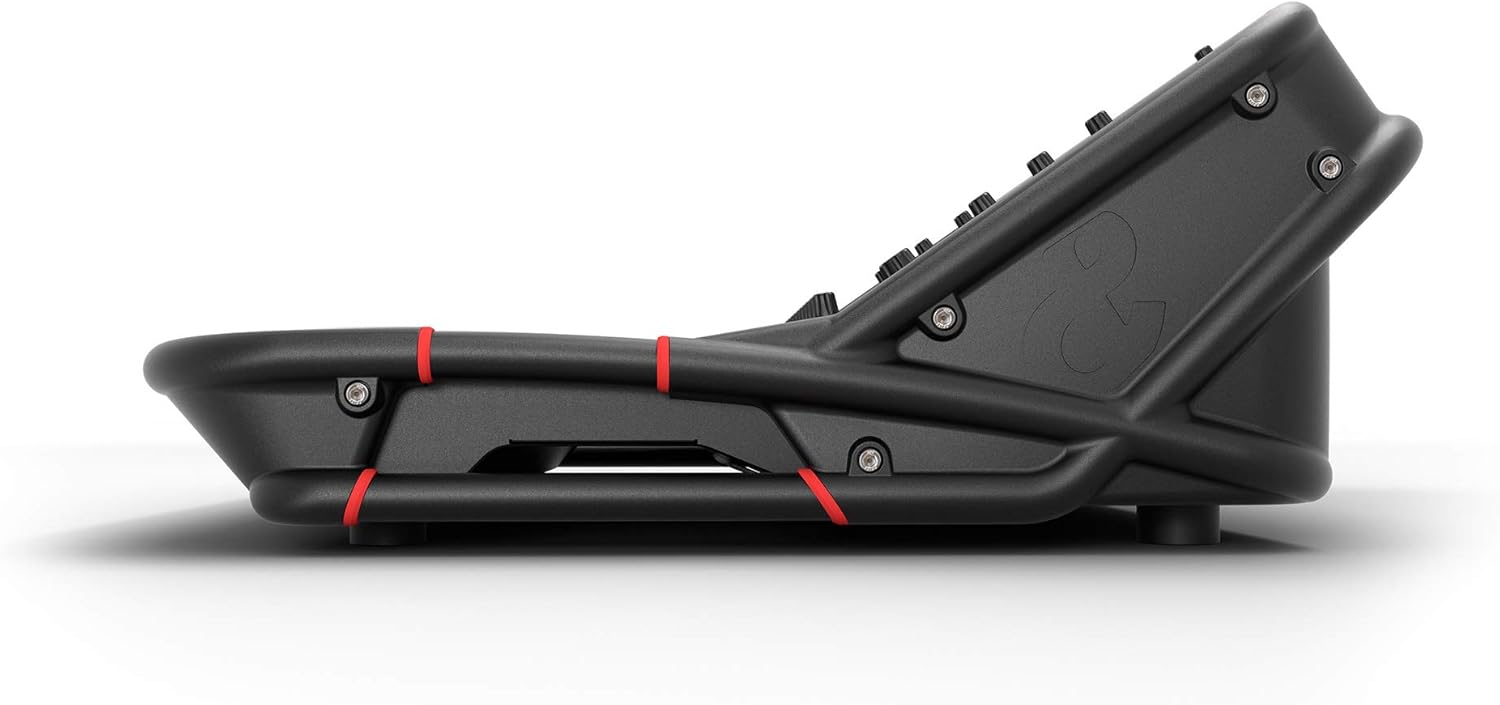

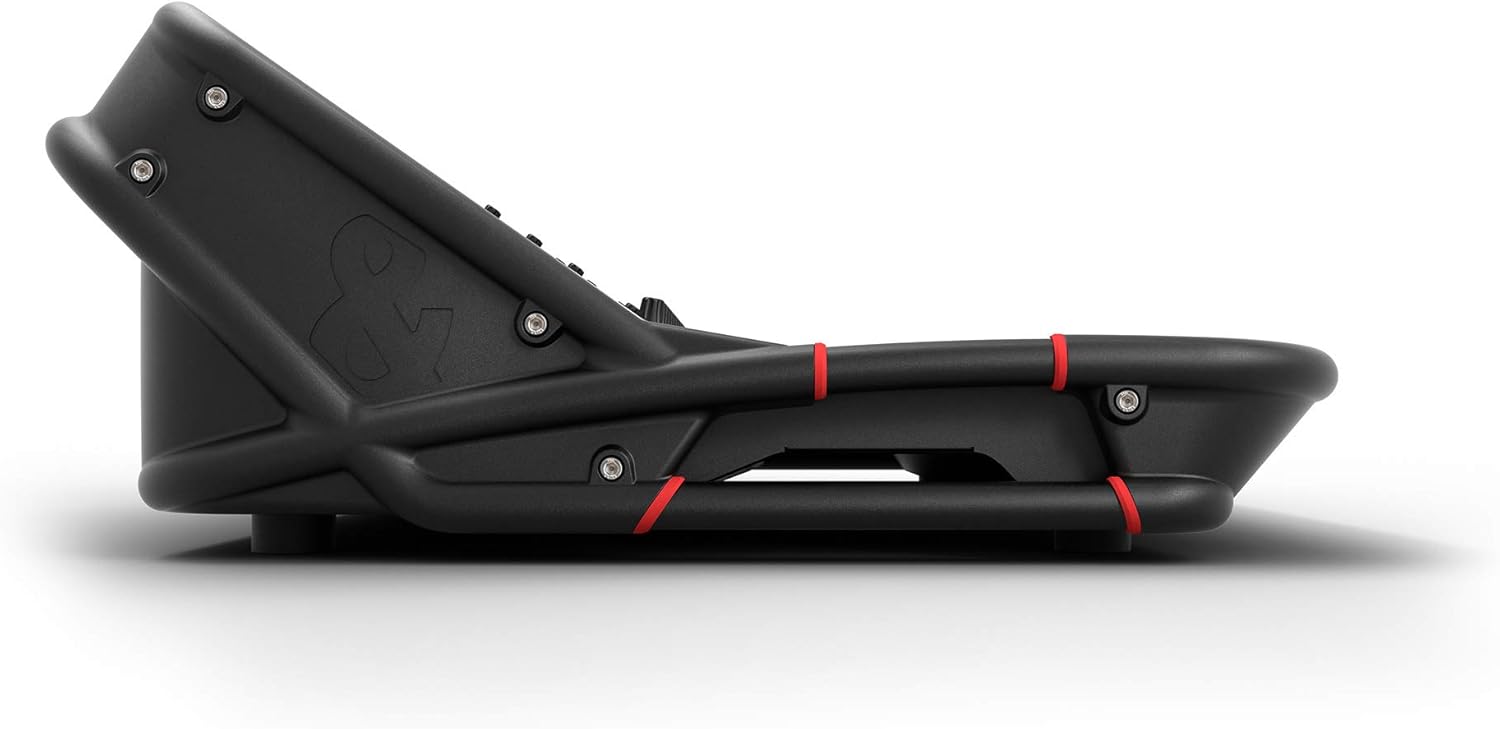

• Super-tough full-metal chassis built for touring and installation

Technical Specifications
