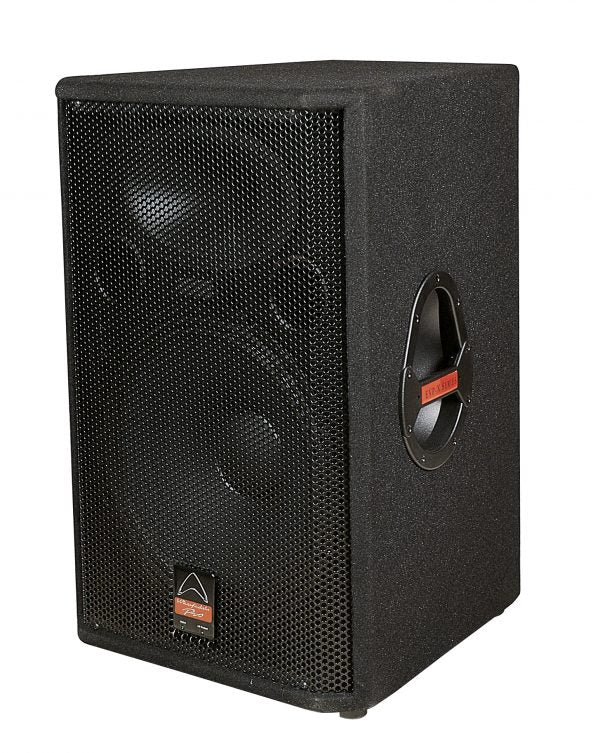

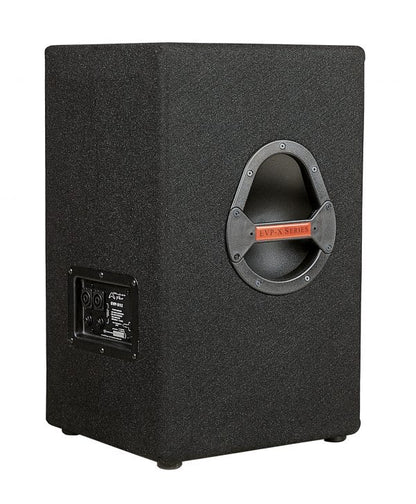

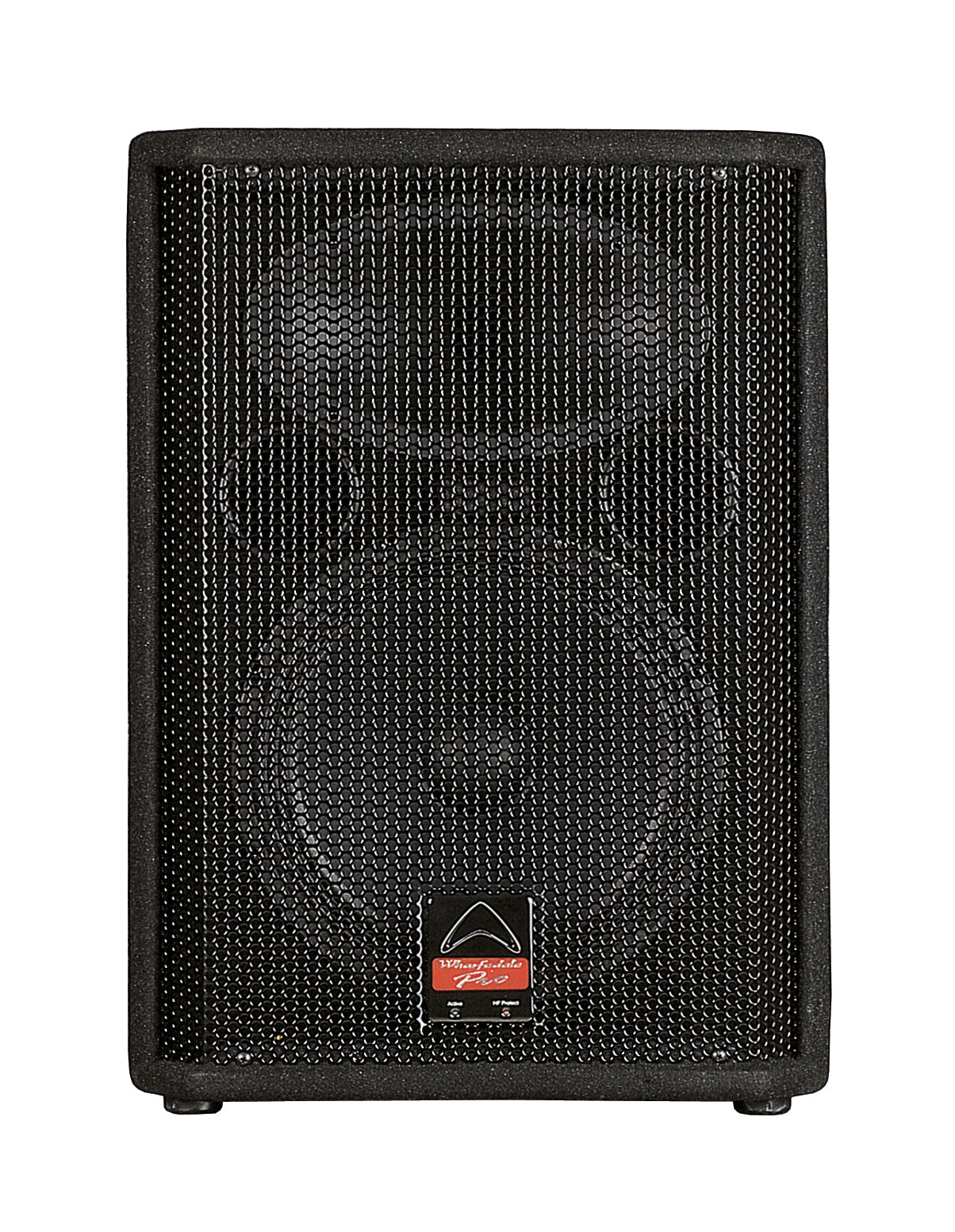

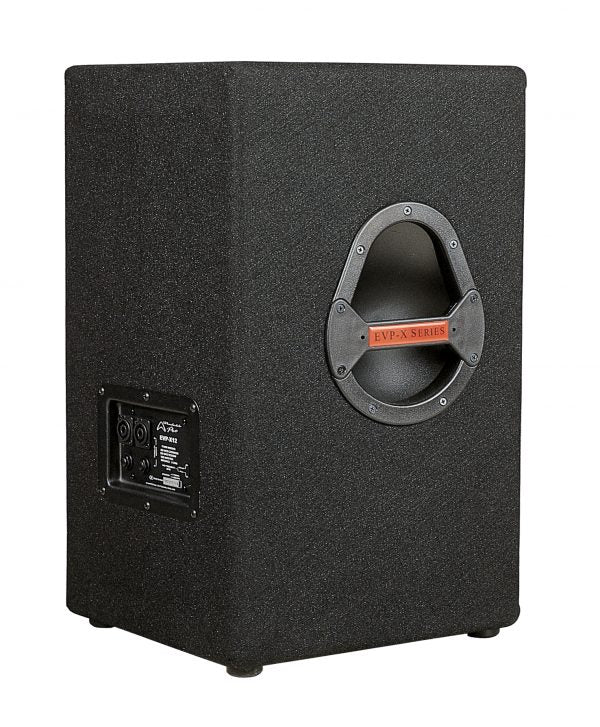

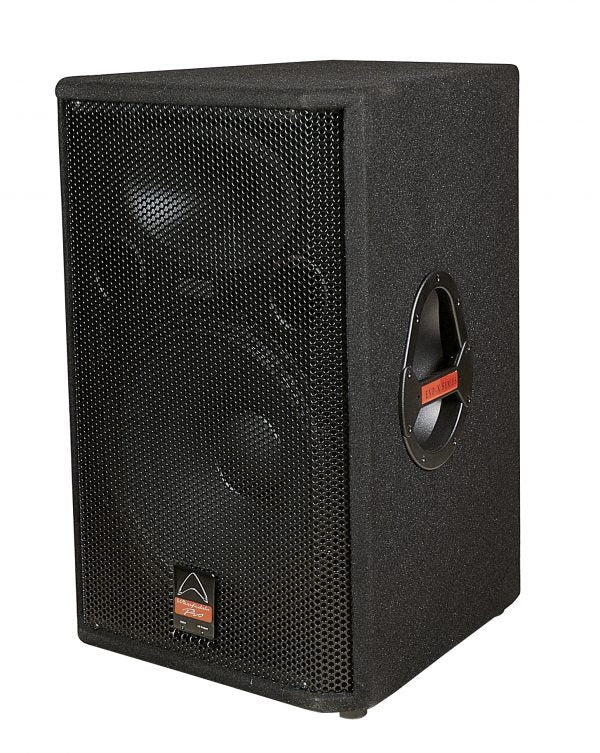

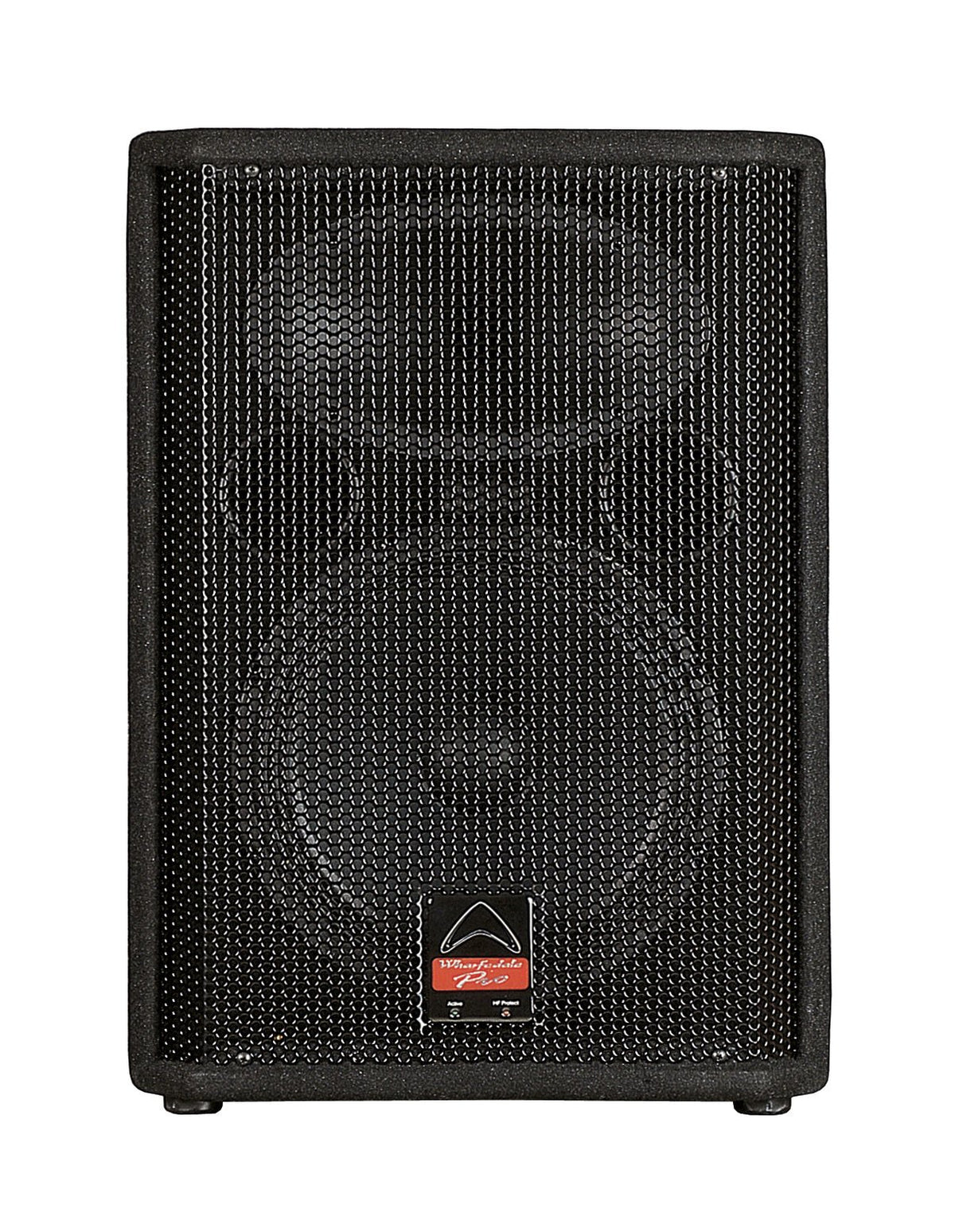

Wharfedale EVP‑X12 — 12" Passive PA Speaker (250W RMS)
Wharfedale EVP‑X12 — 12" Passive PA Speaker (250W RMS)
Share
Couldn't load pickup availability
The Wharfedale Pro EVP‑X12 is part of the original EVP‑X Series—one of Wharfedale’s best‑selling PA speaker lines thanks to its durability, efficiency, and affordability. It features a 12" LF driver paired with a 1.75" titanium HF compression driver, delivering strong mid‑bass, clear vocals, and crisp highs. With 250W RMS / 500W Program / 1000W Peak power handling and 128dB max SPL, it is ideal for churches, DJs, live bands, and mobile PA setups. The 90° × 60° elliptical waveguide ensures even HF dispersion, while the +3dB HF boost switch provides extra brightness when needed. The cabinet includes Speakon + 6.3mm jack inputs, signal/protect LEDs, dual‑angle pole mounts, and a durable carpet finish for long‑term reliability.
-
12" LF driver + 1.75" titanium HF driver
-
250W RMS / 500W Program / 1000W Peak
-
128dB Max SPL for strong output
-
90° × 60° elliptical waveguide for wide HF coverage
-
+3dB HF boost switch for added clarity
-

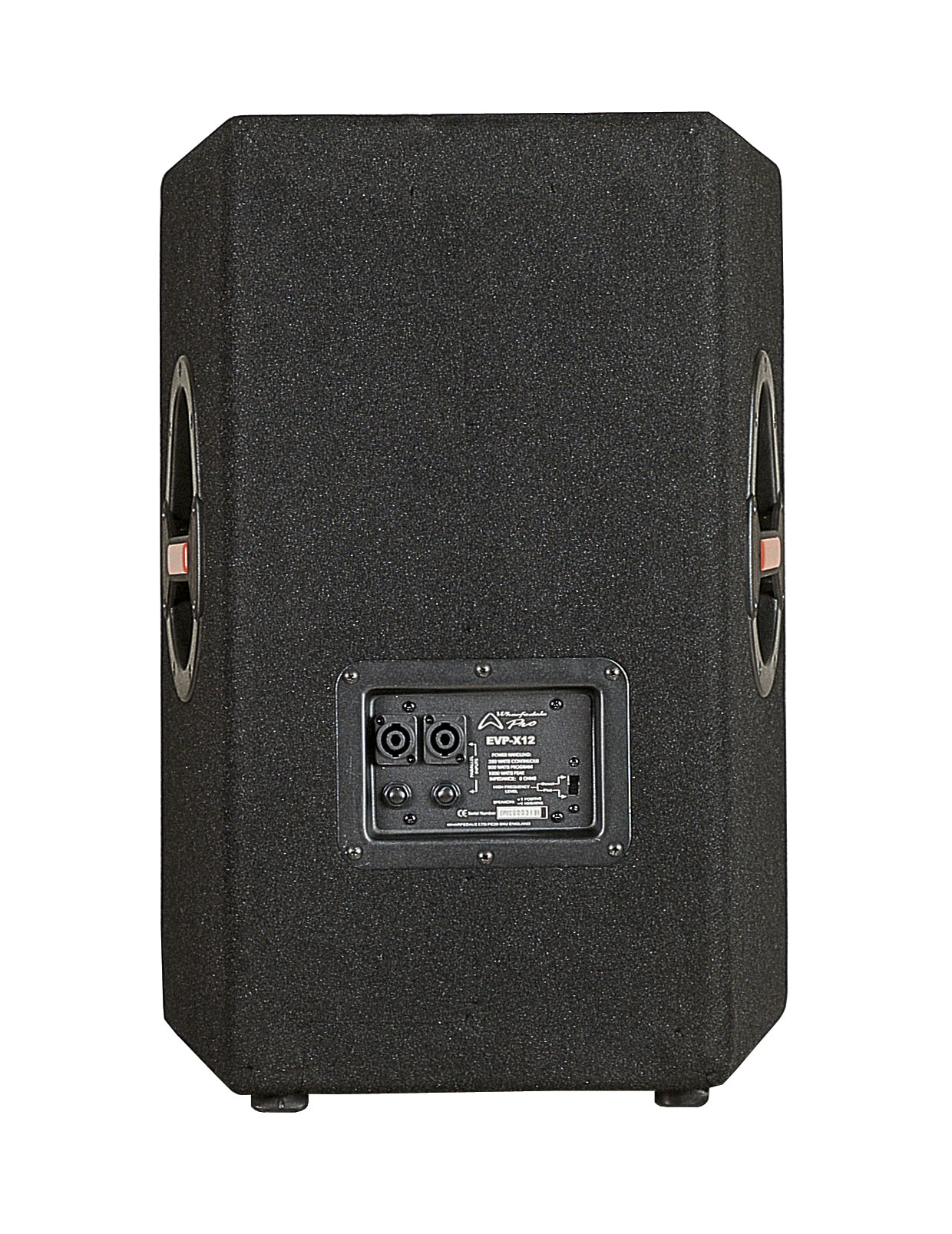

Speakon + 6.3mm jack inputs
-
Signal & Protect LEDs
-
Durable carpet finish + dual‑angle pole mounts
-
Ideal for churches, DJs, bands, rehearsal rooms, and small venues
Technical Specifications
| Feature | Detail |
|---|---|
| LF Driver | 12" ProTech™ driver |
| HF Driver | 1.75" titanium compression driver |
| Power Handling | 250W RMS / 500W Program / 1000W Peak |
| Max SPL | 128dB @ 1m |
| Frequency Response | 55Hz – 20kHz |
| Dispersion | 90° × 60° elliptical waveguide |
| Inputs | Speakon + 6.3mm jack |
| Indicators | Signal & Protect LEDs |
| Construction | Carpet‑covered, steel grille |
| Mounting | Dual‑angle pole mounts |
| Use Case | PA systems, live sound, churches, DJs |
