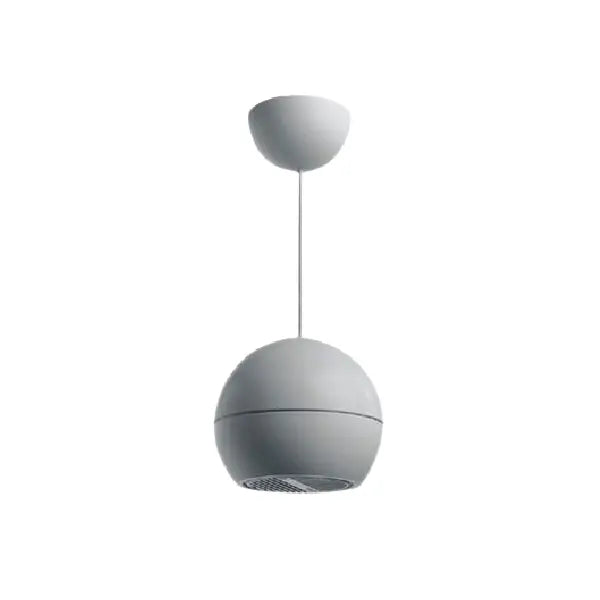

Bosch LBC 3095/15 6″ Pendant Sphere Loudspeaker
Bosch LBC 3095/15 6″ Pendant Sphere Loudspeaker
Share
Couldn't load pickup availability
The Bosch LBC 3095/15 is a ceiling-suspended pendant speaker engineered for clear speech and music reproduction in commercial, hospitality, and voice-alarm installations. Its coaxial 6″ low-frequency driver with integrated high-frequency unit delivers balanced full-range sound. Selectable 100 V-line taps and a fixed 5 m 4-core cable simplify system integration, while the self-extinguishing ABS enclosure meets UL 94 V-0 and complies with EN 54-24, UL 1480, and UL 2043 standards.
Key Features
-
Coaxial 6″ low-frequency cone with integrated high-frequency tweeter for full-range coverage
-
Selectable 100 V-line power taps: 10 W, 5 W, 2.5 W (15 W max handling)
-
Wide, uniform dispersion: 216°×216° @1 kHz; 103°×103° @4 kHz
-
EN 54-24 certified; UL 1480 and UL 2043 listed for voice-alarm use
-
ABS enclosure (UL 94 V-0) with dust and water protection
-
Fixed 5 m 4-core connection cable for rapid, reliable wiring
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LBC 3095/15 (F.01U.012.717) |
| Driver | 6″ coaxial LF cone + HF tweeter |
| Nominal Power Taps | 10 W / 5 W / 2.5 W |
| Maximum Power Handling | 15 W peak |
| Rated Voltage | 100 V |
| Line Impedance | 1 000 Ω |
| Sound Pressure Level (1 kHz/1 m) | 98 dB @10 W; 88 dB @1 W |
| Frequency Range (–10 dB) | 120 Hz – 20 kHz |
| Coverage Angle (–6 dB) | 216°×216° @1 kHz; 103°×103° @4 kHz |
| Connection | 5 m fixed, 4-core (4×0.5 mm²) |
| Enclosure | ABS plastic, UL 94 V-0 self-extinguishing |
| Certifications | EN 54-24; UL 1480; UL 2043 |
| Dimensions (Ø × H) | 185 × 157 mm |
| Weight | 1.64 kg |
| Operating Temperature | –25 °C to +55 °C |
| Operating Humidity | 0 % to 95 % non-condensing |
